A64, 7 Port, Hydraulic Manifold, 7 in Long
Item ID: A64
$233.62
Free ShippingEst. Ship date is Mon, Oct 19th 2026
Product Description
Enerpac A-Series hydraulic manifolds allow you to split the flow of hydraulic oil from a central block.
A64, A65, and A66 manifolds have a 3/8"-18 NPT female port and maximum operating pressure of 10,000 psi (700 bar).
A63, A60, and A61 manifolds have a SAE #4 female port and a maximum operating pressure of 5,000 psi (350 bar).
Product Specifications
Maximum Operating Pressure (psi)10000
Maximum Operating Pressure (bar)700
Number of Ports7
Available - In Stock
About this Product
Enerpac A-Series hydraulic manifolds allow you to split the flow of hydraulic oil from a central block.
A64, A65, and A66 manifolds have a 3/8"-18 NPT female port and maximum operating pressure of 10,000 psi (700 bar).
A63, A60, and A61 manifolds have a SAE #4 female port and a maximum operating pressure of 5,000 psi (350 bar).
Features
- Easy to connect
- Mounting holes on all models

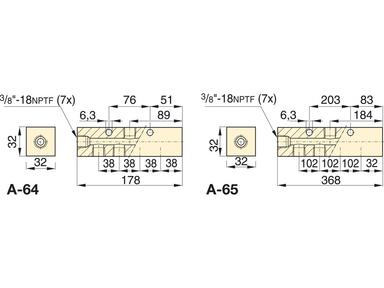

Units:
Maximum Operating Pressure (psi)10000
Maximum Operating Pressure (bar)700
Number of Ports7
Dimension D2 (in)1.25
Product TypeLong Manifold
Dimension F1 (in)1.25
Dimension D1 (in)3
Weight (lbs)3.3
Oil Ports (NPTF)3/8"
Dimension D1 (mm)76
Dimension F2 (mm)89
Dimension F2 (in)3.5
Oil PortsG3/8"
Dimension F1 (mm)32
Dimension D2 (mm)50

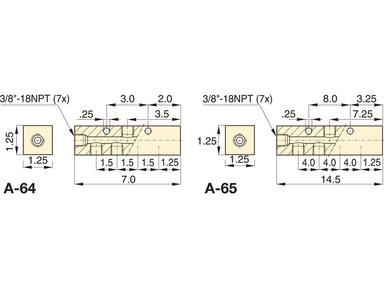

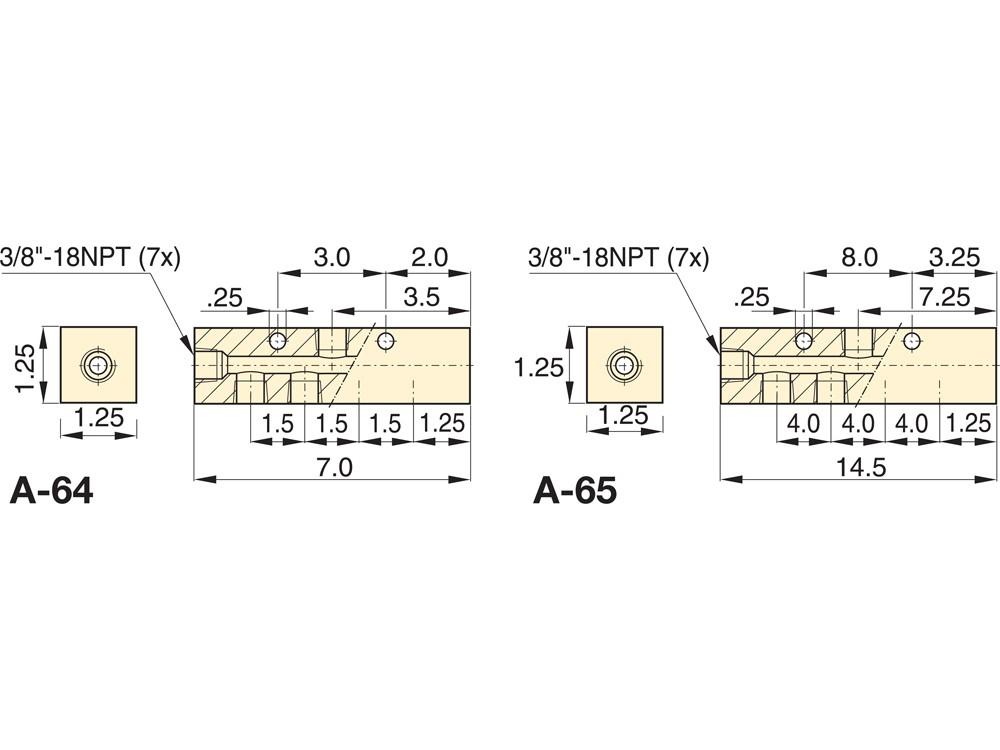

Units:
Dimension A7"
Dimension B1.25"
Dimension C1.25"
Dimension D0.25"
Dimension E.375 - 18 NPT"
Dimension F1.5"
