A92, 1 ton RC Cylinder Attachment, Spreader
Item ID: A92
Product Description
The attachment converts your RC-Series Cylinder into a useful wedge spreader for many different industrial applications. It screws onto RC-Series 10-ton cylinders including the RC102, RC104, RC108, RC1010, RC1014. Please note that the RC101 is not compatible.

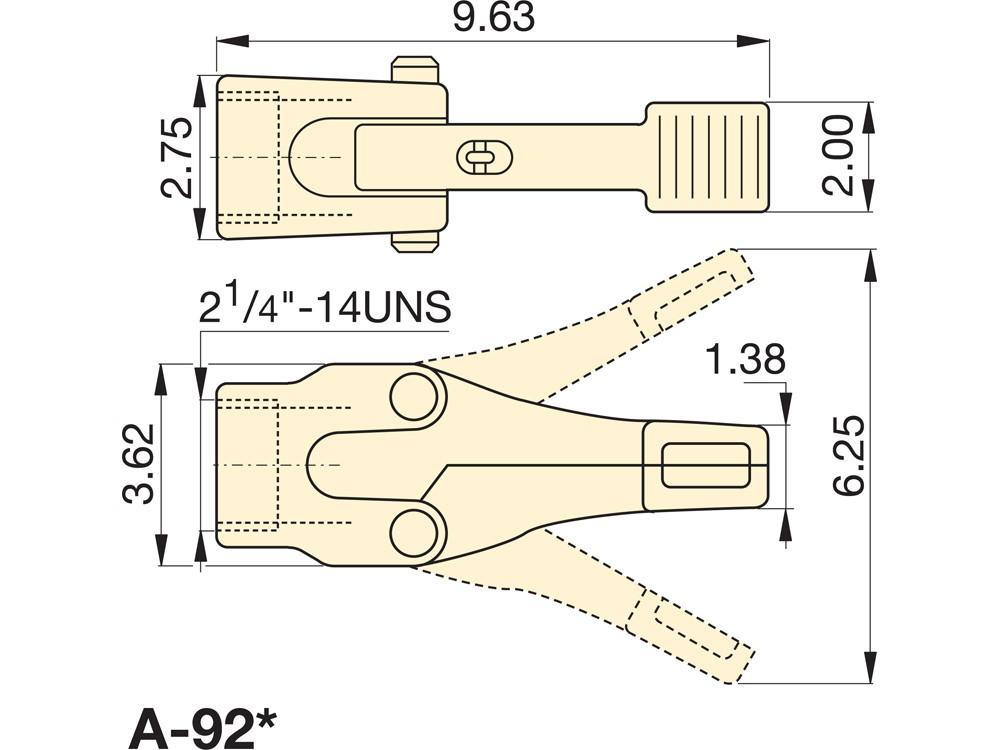

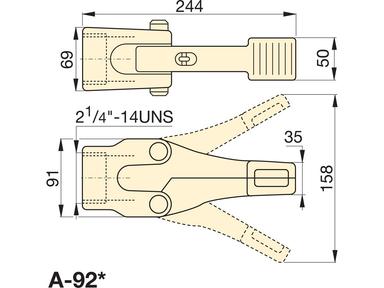

The resulting tool is a single-acting spring return hydraulic spreader that can fit into gaps as small as 1.38" (35mm) and expands up to 6.25" (158mm).
Please note that the maximum load capacity is 1-ton, and the maximum system pressure must be limited to half the rated pressure (5000 psi).
Product Specifications
About this Product
The attachment converts your RC-Series Cylinder into a useful wedge spreader for many different industrial applications. It screws onto RC-Series 10-ton cylinders including the RC102, RC104, RC108, RC1010, RC1014. Please note that the RC101 is not compatible.
The resulting tool is a single-acting spring return hydraulic spreader that can fit into gaps as small as 1.38" (35mm) and expands up to 6.25" (158mm).
Please note that the maximum load capacity is 1-ton, and the maximum system pressure must be limited to half the rated pressure (5000 psi).
