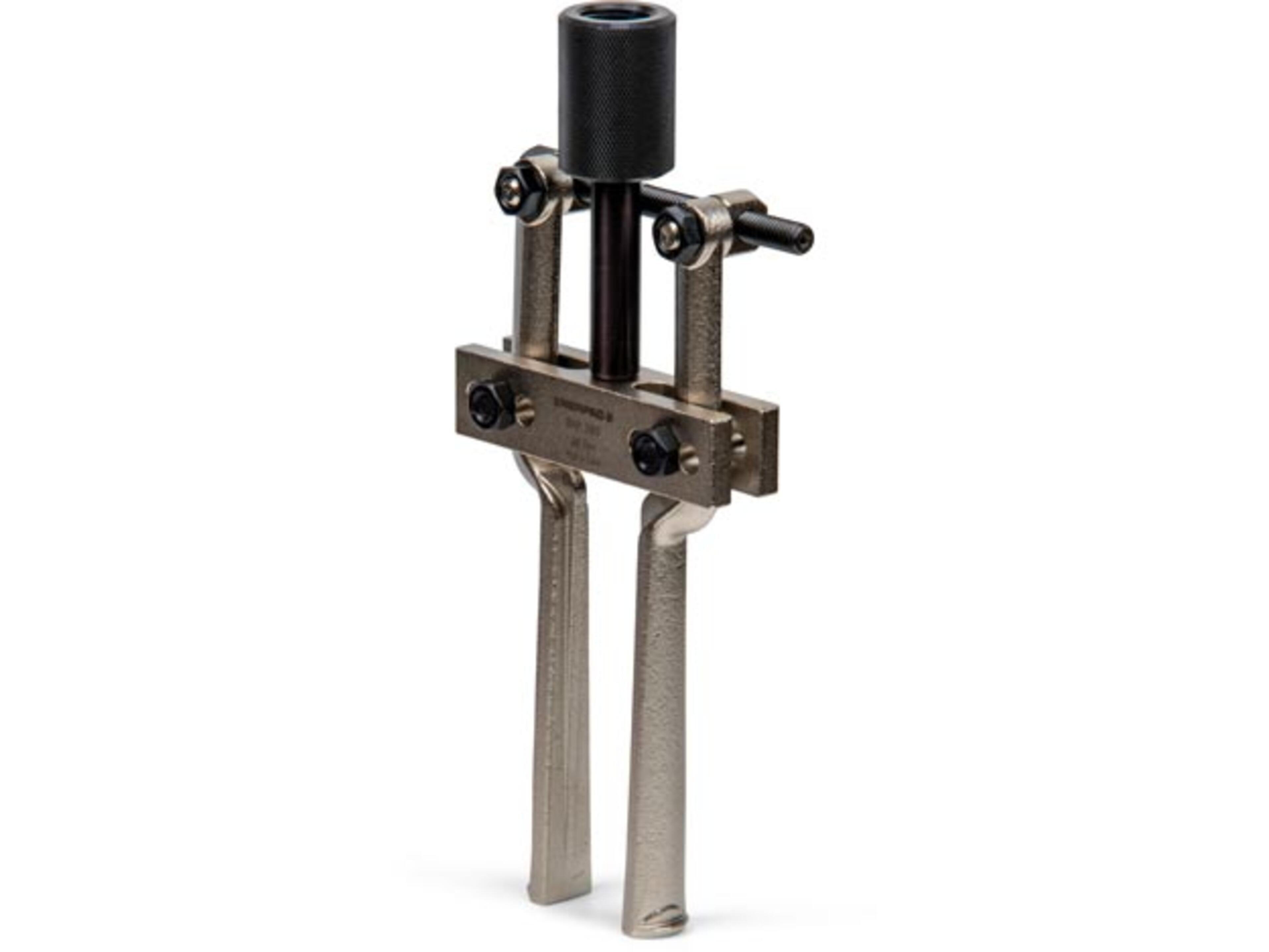

BHP280, 12 Ton, Hydraulic Bearing Cup Puller
Item ID: BHP280
$1,003.52
Free ShippingEst. Ship date is Mon, Oct 19th 2026
Product Specifications
Maximum Operating Pressure (psi)5000
Dimension C Maximum (in)5.71
Minimum Spread (in)1.26
Available - In Stock
About this Product
Features
- Made of high strength steel alloy
- Easily adapted to Cross Bearing Pullers for fast and efficient removal of the most difficult parts
- Adjustable to fit a variety of bearings and seals
- Bearing cup puller rated at 50% of puller capacity
- Do not exceed 50% of the rated puller capacity when using a double crosshead (2 griparms) or when using puller legs in combination with bearing puller attachment.
Units:
Maximum Operating Pressure (psi)5000
Dimension C Maximum (in)5.71
Minimum Spread (in)1.26
Maximum Spread (in)6.3
Adjusting Screw Thread (in)1" - 8 UNC
Maximum Spread (mm)220
Dimension C Maximum (mm)145
Puller Power SourceHydraulic
Product TypeBearing Cup Puller
Capacity (Imperial tons)12
Maximum Reach (in)5.51
Minimum Spread (mm)25
Maximum Operating Pressure (bar)700
Dimension C Minimum (mm)40
Adjusting Screw Thread (mm)1" - 8 UNC
Maximum Reach (mm)140
Dimension C Minimum (in)1.57
Units:
Dimension A6.46"
Dimension B10.43"
