CR321B, Reel Jacks, 20 ton (177,9 kN) Capacity, 14 in (355,6 mm) Stroke
Item ID: CR321B
$2,880.40
Free ShippingEst. Ship date is Fri, Oct 30th 2026
Product Description
- Double-lever sockets for jacking in close quarters.
- Multiple-tooth pawls for strength & safety.
- Drop-forged, alloy steel, heat-treated components.
- Adjustable spring links for added serviceability.
- Plated springs to resist corrosion.
- Precision machining throughout.
- Steel lever bars sold separately.
- Convenient center mounted carrying handle makes this jack easy to position and move.
- Treated laminated hardwood base provides solid support along with durability.
- CE Compliant - Our Jack design specifications meet or exceed ANSI /ASME B30.1 Safety Standards.
Product Specifications
Dimension C2 (mm)558,8
Capacity/Pair Side Hooks (kN)89,0
Product TypeReel Jacks
Available - Backorder
About this Product
- Double-lever sockets for jacking in close quarters.
- Multiple-tooth pawls for strength & safety.
- Drop-forged, alloy steel, heat-treated components.
- Adjustable spring links for added serviceability.
- Plated springs to resist corrosion.
- Precision machining throughout.
- Steel lever bars sold separately.
- Convenient center mounted carrying handle makes this jack easy to position and move.
- Treated laminated hardwood base provides solid support along with durability.
- CE Compliant - Our Jack design specifications meet or exceed ANSI /ASME B30.1 Safety Standards.
Units:
Capacity (Imperial tons)20
Stroke (inch)14
Power SourceMechanical
Capacity/Pair Side Hooks (tons)10
Capacity/Pair Top Hooks (tons)20
Handle Effort per Ton (lbs)48
Weight (lbs)125

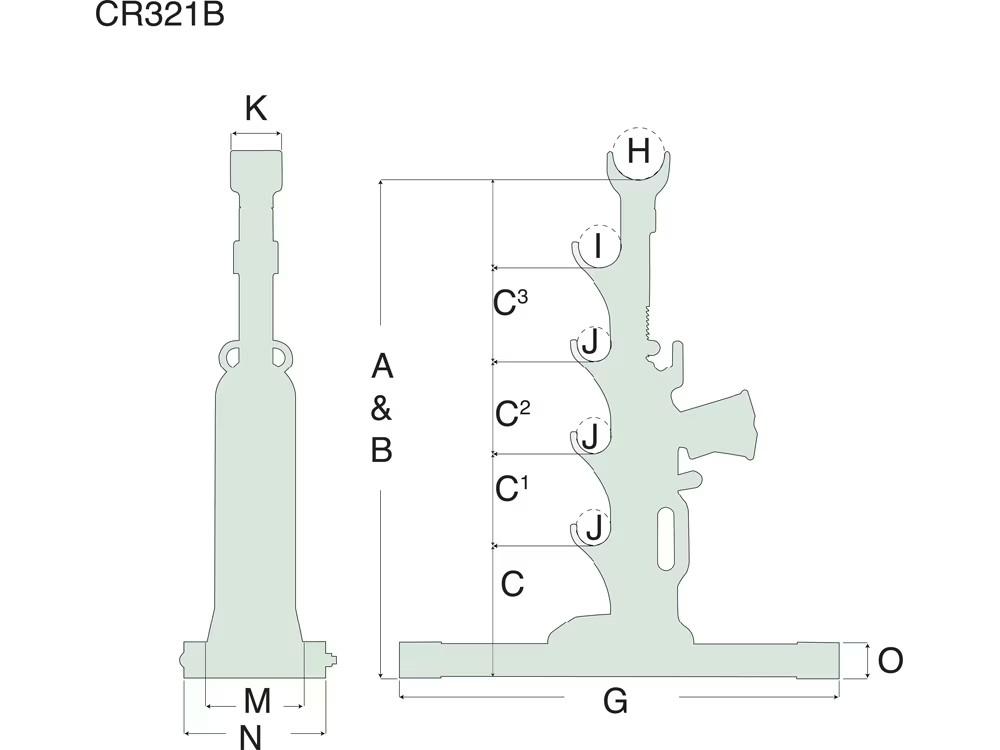

Units:
Dimension A34.5"
Dimension B48.5"
Dimension C9.25"
Dimension G30.37"
Dimension H3.63"
Dimension J2.38"
Dimension K3.5"
