E392, Manual Torque Multiplier, Reaction Bar, 2200 ft. lbs Torque, 1 in. Square Drive
Item ID: E392
$3,636.06
Free ShippingEst. Ship date is Mon, Oct 26th 2026
Product Description
This reaction bar type of manual torque multiplier provides high torque for accurate make-up or break-out of stubborn fasteners.
The reaction bar configuration is suited to applications where space is limited, where multiple reaction points are available, and when portability is desirable.
Product Specifications
Square Drive (in)1
Input Torque (Ft.lbs)162
Overload ProtectionYes
Available - Backorder
About this Product
This reaction bar type of manual torque multiplier provides high torque for accurate make-up or break-out of stubborn fasteners.
The reaction bar configuration is suited to applications where space is limited, where multiple reaction points are available, and when portability is desirable.
Features
- High efficiency planetary gear sets achieve high output torque from low input torque
- Most models operator protected by anti-backlash device
- Accuracy ±5% of reading from 20% to 100% of full-scale rating
- Reversible, tighten or loosen bolts
- Reaction bar type
- Replaceable shear drives on 300 Series models provide overload protection of internal power train (one replacement shear drive is included)
Units:
Square Drive (in)1
Input Torque (Ft.lbs)162
Overload ProtectionYes
Dimension L (in)19.6
Compatible ProductsBSH10088,
BSH10094,
BSH10100,
BSH10125,
BSH10131,
BSH10144,
BSH10156,
BSH10163,
BSH10163,
BSH10175,
BSH10188,
BSH1019,
BSH1019,
BSH10194,
BSH10200,
BSH10206,
BSH10213,
BSH10219,
BSH10225,
BSH10231,
BSH10238,
BSH1024,
BSH10244,
BSH10250,
BSH10263,
BSH10269,
BSH1027,
BSH1027,
BSH10281,
BSH10288,
BSH1030,
BSH1030,
BSH10300,
BSH10306,
BSH10313,
BSH10319,
BSH1032,
BSH10325,
BSH10338,
BSH1035,
BSH10350,
BSH1036,
BSH10363,
BSH1038,
BSH10388,
BSH1043,
BSH1046,
BSH1046,
BSH1050,
BSH1055,
BSH1060,
BSH1065,
BSH1065,
BSH1070,
BSH1070,
BSH1075,
BSH1075,
BSH1080,
BSH1085,
BSH1090,
BSH1095,
BSH1095
Maximum Torque Output (Nm)2983
Product TypeReaction Bar Multiplier
Torque Ratio13,6 : 1
Anti BacklashYes
Output Male Square Drive Replaceable Shear Drive ModelE392SDK
Maximum Torque Output (Ft.lbs)2200
Output Male Square Drive S2 (in)1
Weight (kg)8.3
Weight (lbs)18.3

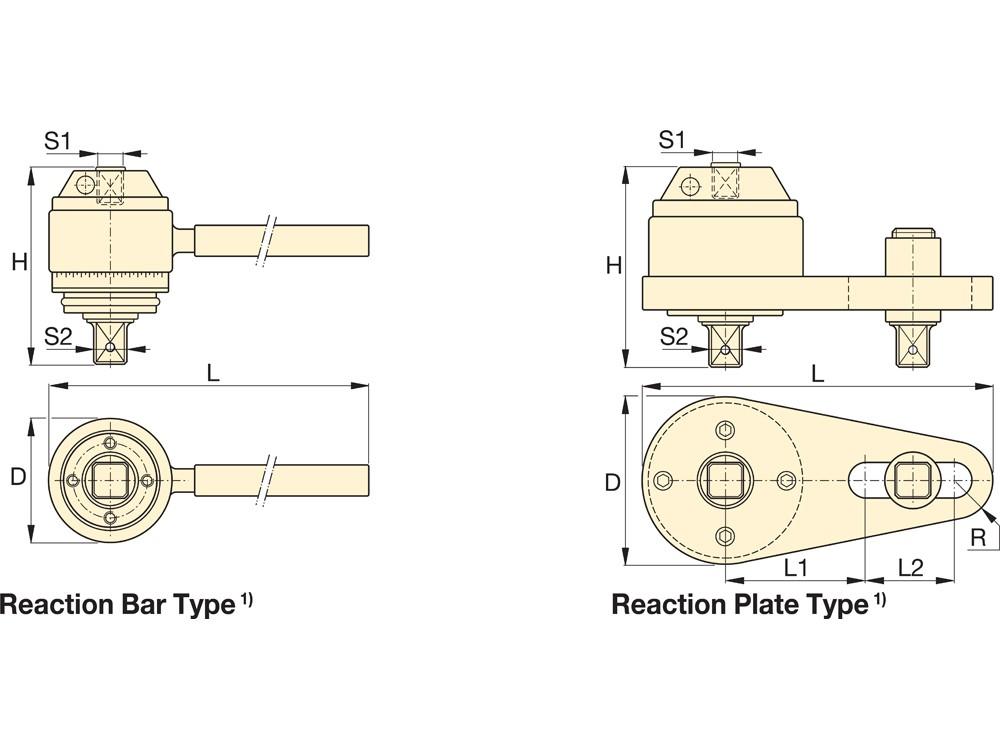

Dimension L (mm)498
Input Torque (Nm)220
Input Female Square Drive S1 (in)1/2
Units:
Dimension D4.1"
Dimension H5.7"
