EWCH180, 89.0 Ton Capacity, Hydraulic Wire and Cable Cutter, Maximum Material Diameter 7.09 in
Item ID: EWCH180
$31,151.53
Free ShippingEst. Ship date is Tue, DecĀ 29th 2026
Product Specifications
Maximum Operating Pressure (psi)10000
Weight (lbs)330
Maximum Material Diameter (mm)180
Available - Backorder
About this Product
Features
- Your quick and clean way to cut cable and wire rope
- The EWCH-Series Hydraulic Wire and Cable Cutters are ideal for use in production facilities where demanding, high volume cutting applications are often encountered.
- Each tool is driven by a specialized external hydraulic pump, which provides greater cutting force and allows for higher duty cycles compared with other cutter types.
- The EWCH-Series Hydraulic Cutters are designed to work with ZE6410X-Series electric pumps. Pump models vary by voltage type.
- Controlled cutting process enhances operator safety
- Minimal spark risk compared with torching, grinding and sawing methods
- Cutters produce minimal vibration, helping prevent HAVS (Hand Arm Vibration Syndrome)
- Guillotine-style blades maintain effectiveness throughout rigorous use.
- Cutting head can be opened and closed to help position material to be cut
- Double-acting cylinder with advance and retract buttons improves control and reduces jamming
- External hydraulic pump helps keep tool cooler and working longer (pump and hose sold separately)
Units:
Maximum Operating Pressure (psi)10000
Capacity (Imperial tons)89
Maximum Material HardnessHRc 43
Pump Power SourceElectric Pump
Cutter Power SourceElectric
Maximum Material Diameter (in)7.09
Maximum Material Tensile Strength (psi)94275
Weight (lbs)330
Units:

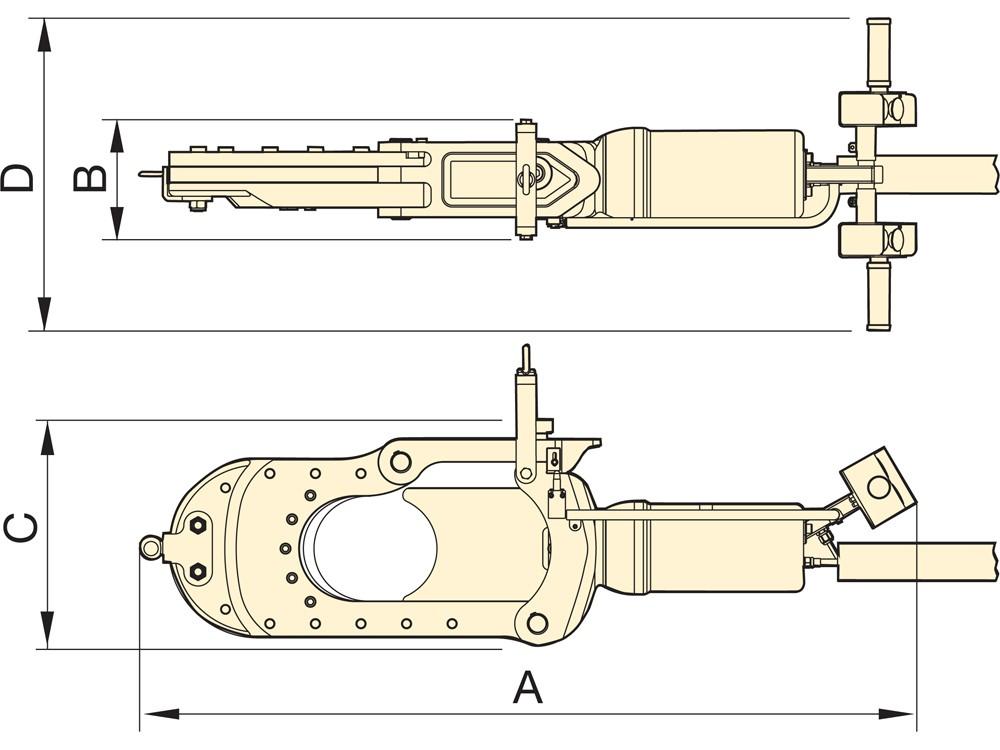

Dimension A53.7"
Dimension B8.3"
Dimension C15.8"
Dimension D21.7"
