Hydraulic Hoses
F604, Flush-Face Hydraulic Coupler, Complete Set
Item ID: F604
$366.34
Free ShippingEst. Ship date is Mon, Oct 19th 2026
Product Specifications
Maximum Operating Pressure (psi)700
Maximum Operating Pressure10000
Product TypeFlush-face Coupler
Available - In Stock
BUY THE SYSTEM
Select all required components to complete your system.
Hydraulic Gauges
Total Price: $0.00
Total Price: $684.41
About this Product
Features
- 3/8" High Flow "Flush-face" Couplers
- Featuring "Push-to-connect" operation, to guarantee good connection every time
- Flush-face, zero-leak operation for minimal spillage
- Hydraulic Tool Manufacters Association recognized for safety and performance

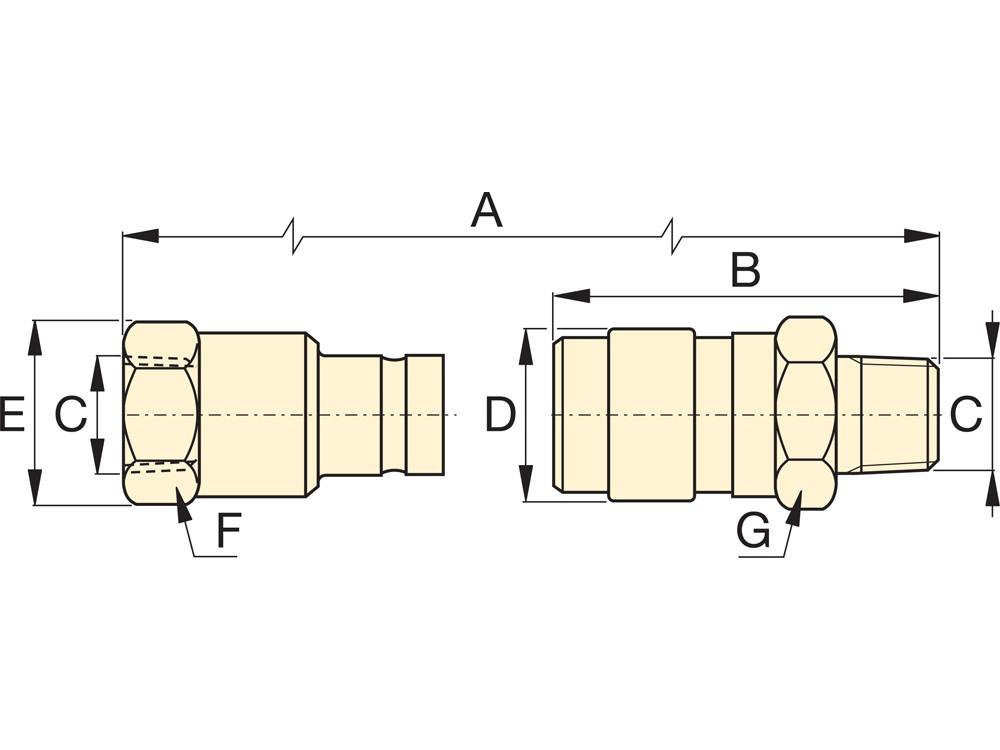

- Dimension A is total length when male and female halves are connected.
Units:
Maximum Operating Pressure (psi)700
Maximum Flow Capacity (in3/min)2500
Units:
Dimension A4.36"
Dimension B2.85"
Dimension C3/8" NPTF"
Dimension D1.23"
Dimension E1.23"
Dimension F1.06"
Dimension G1.12"
