FTR1093610SG, 10.9 ksi Grade Stud, Hydraulic Foundation Bolt Tensioner, 1.42 in Bolt Diameter, .39 in stroke, 2.36 in Nut A/F
Item ID: FTR1093610SG
Contact for Pricing
Product Specifications
Weight (kg)8,6
Stroke (mm)10
Weight (lbs)19
About this Product
Features
- FTR-Series Foundation Bolt Tensioners provide fast, accurate and easy tightening of external or internal-ring wind tower foundations
- Standard models are available for 75, 150 ksi and metric style Williams, Dyson and Macalloy bar types
- Long-stroke options accelerate process with single-pull tensioning
- FTR-Series Foundation Bolt Tensioners are designed specifically for tensioning wind tower foundation bolts. These tensioners provide the speed and precision required by this critical application. Potential thread fit problems are eliminated through the use of existing rebar hex nuts as a reaction point.
- 1. Corrosion protection: Zinc coating provides best-in-class corrosion resistance.
- 2. Over-stroke indicator: Extends life by helping to prevent over-stroking of cylinder.
- 3. Long-life seals: For maximum durability and extended service life intervals
- 4. Auto-retract piston: Simplifies use and improves speed of operation.
- 5. Quick-disconnect coupler: For safe, simple hydraulic connection. OPTIONAL 360° swivel available for additional hose positioning flexibility.
- 6. Interchangeable bridge: For optimal application fit.
Units:
Weight (kg)8,6
Stroke (mm)10
Weight (lbs)19
Tensioner LoadCapacityTons64.4
Tensioner minimumBoltProtrusionMm195
Product TypeFoundation Bolt Tensioner
Tensioner minimumBoltProtrusionIn7.68
Maximum Operating Pressure (bar)1500
Maximum Operating Pressure (psi)21750
Tensioner hydraulicPressureAreaMm23820
Tensioner barGradeKsi10.9
Tensioner nutAFMm60
Tensioner nutAFIn2.36
Tensioner CylinderEffectiveAreain25.92
Tensioner boltDiameterIn1.42
Tensioner barSizeDesignation36
Tensioner boltDiameterMm36
Tensioner loadCapacityKN573,0
Stroke (inch)0.39

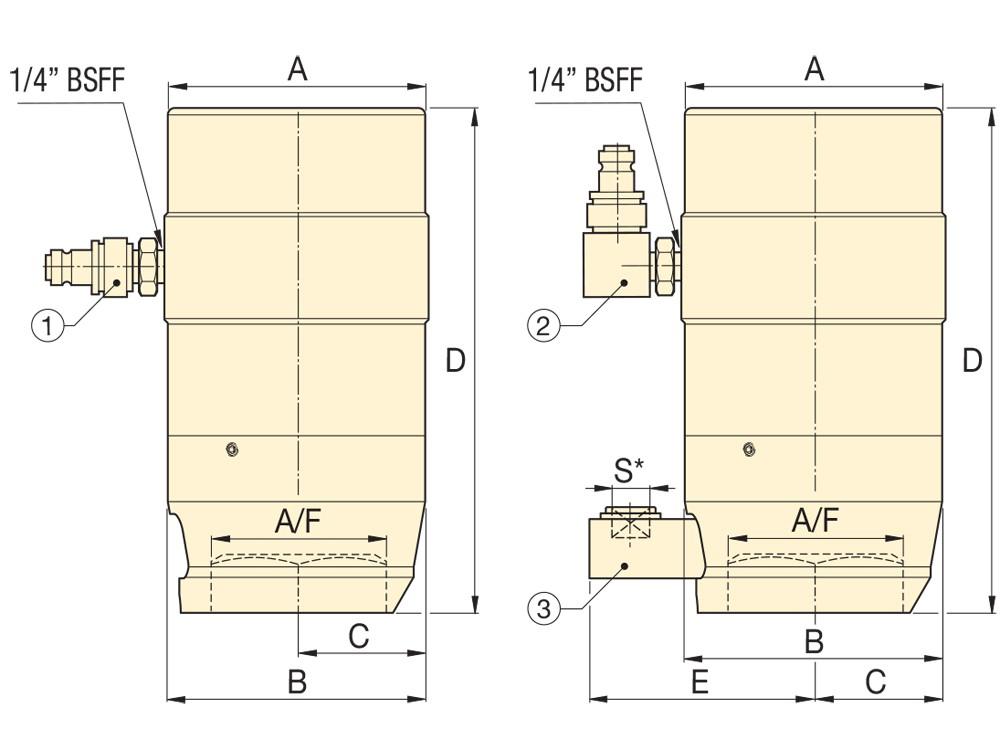

Units:
Dimension A4.02"
Dimension B3.9"
Dimension C1.57"
Dimension D6.93"
Dimension E3.74"
