GA90R, Air Over Hydraulic Compact Foot Pump, Pendant Control, 8 in3/min (131,1 cm3/min) Oil Flow at 10,000 psi (700 bar), 90 in3 (1474 cm3) Usable Oil Capacity, For use with Single-Acting Tools
Item ID: GA90R
$1,409.95
Free ShippingEst. Ship date is Mon, Oct 19th 2026
Product Description
- An intermittent portable foot controlled pump best suited for pressing, production and shop tool applications. Runs effectively on 10 CFM (10 pi3) / @ 60 - 150 PSI (4,13 - 10,34 bar).
- 3 position non-slip, diamond grip treadle for safe advance, hold & retract operation.
- Quiet operation - 85 dba @ 10,000 psi (700 bar) for in-house production.
- Rugged all metal construction.
- High quality rubber gasket seals.
- Integrated non-spill vent / oil level indicator.
- Pedal can be used to reduce operator strain by locking in the release position.
- Four mountable non-skid rubber feet can be used to make your pump stationary.
- A non-slip diamond plate texture gives the user safe and controlled foot pivoting action.
Product Specifications
Weight (lbs)23.5
Air Pressure Range (bar)4 - 10
Mounting Holes H (mm)235,5
Available - In Stock
About this Product
- An intermittent portable foot controlled pump best suited for pressing, production and shop tool applications. Runs effectively on 10 CFM (10 pi3) / @ 60 - 150 PSI (4,13 - 10,34 bar).
- 3 position non-slip, diamond grip treadle for safe advance, hold & retract operation.
- Quiet operation - 85 dba @ 10,000 psi (700 bar) for in-house production.
- Rugged all metal construction.
- High quality rubber gasket seals.
- Integrated non-spill vent / oil level indicator.
- Pedal can be used to reduce operator strain by locking in the release position.
- Four mountable non-skid rubber feet can be used to make your pump stationary.
- A non-slip diamond plate texture gives the user safe and controlled foot pivoting action.
Units:
Maximum Operating Pressure (psi)10000
Cylinder CompatabilitySingle-Acting
Usable Oil Capacity (in3)90
Output Flow Rate at 0 psi (in3/min) 68
Output Flow Rate 10,000 psi (in3/min)8
Valve OperationManual
Power SourceAir
Pump ControlPendant
Air Pressure Range (psi)60 - 150
Sound Level (dBa)85
Weight (lbs)23.5

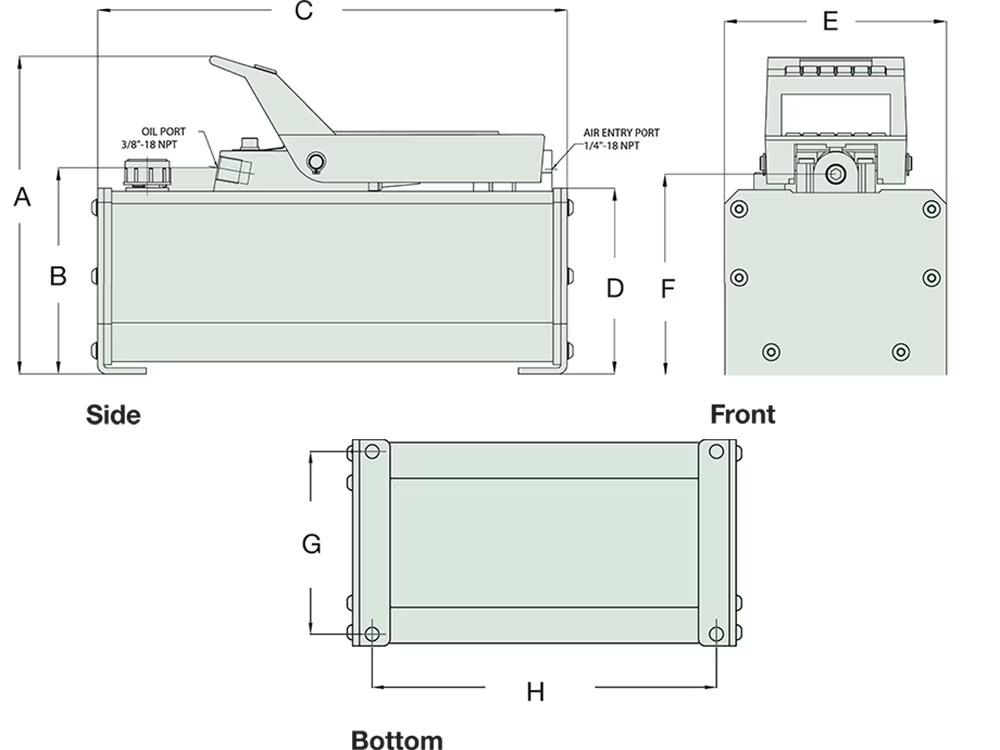

Units:
Dimension A8.38"
Dimension B5.32"
Dimension C10.69"
Dimension D4.81"
Dimension E5.81"
Dimension F5.25"
