GA9460D, Air Over Hydraulic Compact Foot Pump, Valve Control, 11 in3/min (180 cm3/min) Oil Flow at 10,000 psi (700 bar), 460 in3 (7538,0 cm3) Usable Oil Capacity, For use with Double-Acting Tools
Item ID: GA9460D
$1,698.99
Free ShippingEst. Ship date is Mon, May 3rd 2027
Product Description
- An intermittent portable foot controlled pump best suited for pressing, production and shop tool applications. Runs effectively on 10 CFM (10 pi3) / @ 60 - 150 PSI (4,13 - 10,34 bar).
- 3 position non-slip, diamond grip treadle for safe advance, hold & retract operation.
- Quiet operation - 85 dba @ 10,000 psi (700 bar) for in-house production.
- Rugged all metal construction.
- High quality rubber gasket seals.
- Integrated non-spill vent / oil level indicator.
- Pedal can be used to reduce operator strain by locking in the release position.
- Four mountable non-skid rubber feet can be used to make your pump stationary.
- A non-slip diamond plate texture gives the user safe and controlled foot pivoting action.
Product Specifications
Maximum Operating Pressure (psi)10000
Product TypeAir Pump - Foot Pump
Weight (kg)18,6
Available - Backorder
About this Product
- An intermittent portable foot controlled pump best suited for pressing, production and shop tool applications. Runs effectively on 10 CFM (10 pi3) / @ 60 - 150 PSI (4,13 - 10,34 bar).
- 3 position non-slip, diamond grip treadle for safe advance, hold & retract operation.
- Quiet operation - 85 dba @ 10,000 psi (700 bar) for in-house production.
- Rugged all metal construction.
- High quality rubber gasket seals.
- Integrated non-spill vent / oil level indicator.
- Pedal can be used to reduce operator strain by locking in the release position.
- Four mountable non-skid rubber feet can be used to make your pump stationary.
- A non-slip diamond plate texture gives the user safe and controlled foot pivoting action.
Units:
Maximum Operating Pressure (psi)10000
Cylinder CompatabilityDouble-Acting
Usable Oil Capacity (in3)460
Output Flow Rate at 0 psi (in3/min) 68
Output Flow Rate 10,000 psi (in3/min)11
Valve OperationManual
Power SourceAir
Pump ControlValve
Air Pressure Range (psi)60 - 150
Sound Level (dBa)85
Weight (lbs)41

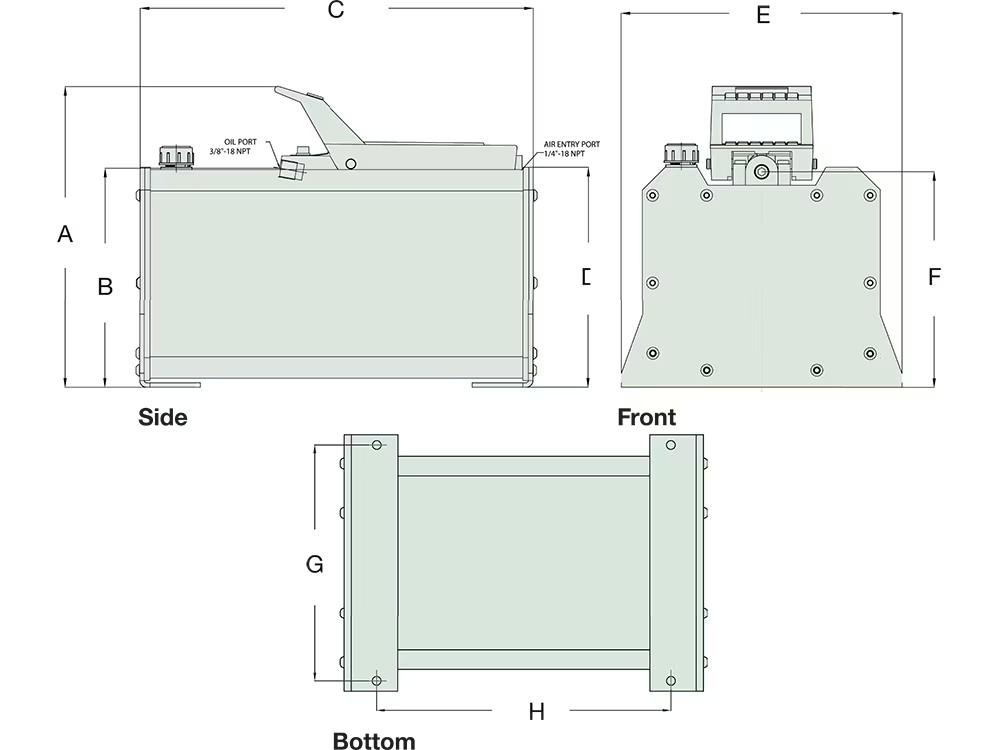

Units:
Dimension A11.88"
Dimension B7.94"
Dimension C10.63"
Dimension D7.94"
Dimension E9.84"
Dimension F7.88"
