GT1LCB, Hydraulic Topside Bolt Tensioner, 1 in Maximum Thread Range
Item ID: GT1LCB
$970.00
Free ShippingEst. Ship date is Mon, JanĀ 11th 2027
Product Specifications
Stroke (mm)10
Tensioner hydraulicPressureAreaMm21495,4
Maximum Operating Pressure (psi)21750
Available - Backorder
About this Product
Features
- Adaptor kits for a range from 5/8" to 1" or from M16 to M30
- Twin ports for quick connection of multiple tools
- Only one size of bridge per size of load cell
- Detachable and rotational bridge simplifies tool positioning
- Full bridge window
- Piston stroke indicator
- Black surface treatment protects against corrosion
- Anti-slip grip for more secure handling
- Universal and multi-use tool
Units:
Stroke (mm)10
Tensioner hydraulicPressureAreaMm21495,4
Maximum Operating Pressure (psi)21750
Weight (lbs)6.6
Tensioner CylinderEffectiveAreain22.32
Stroke (inch)0.39
Tensioner dimensionEmin mm243
Tensioner dimensionEmin in9.6
Tensioner ThreadedFastnerRangein5/8" - 1"
Product TypeTopside Bolt Tensioner
Tensioner ThreadedFastnerRangemmM16 - M30
Tensioner boltRangeIn5/8" - 1"
Tensioner boltRangeMmM16 - M30
Tensioner LoadCapacityTons25.2
Weight (kg)3
Tensioner cylinderEffectiveAreaMm21495,4
Maximum Operating Pressure (bar)1500
Tensioner loadCapacityKN224,3

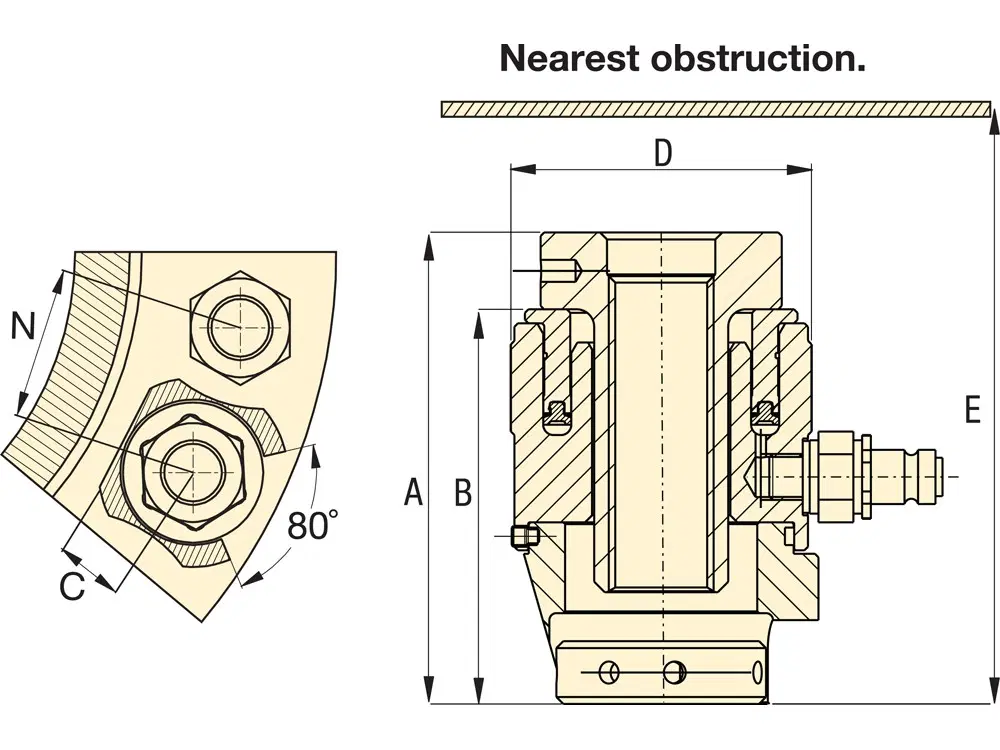

Units:
Dimension A5.31"
Dimension B4.45"
Dimension C1.06"
Dimension D3.29"
Dimension F1.7"
