IPA1220, 10 Ton, H-Frame Hydraulic Press with RC1010 Single-Acting Cylinder and XA12 Air Pump
Item ID: IPA1220
$4,787.32
Free ShippingEst. Ship date is Fri, Nov 6th 2026
Product Specifications
Capacity (Imperial tons)10
Power Source ValveManual
Maximum Vertical Daylight (in)40
Available - Backorder
About this Product
Features
- Quality welded frame for maximum strength and long life
- Exclusive "Hydra-Lift™" bed for effortless adjustment of the vertical daylight (10-ton models are manual)
- Roller head design is standard to allow movement and locking of the cylinder from side to side (10-ton, 25-ton, and 30-ton are manual)
- All models in the Quick Selection Chart have been matched to a pump, cylinder, hoses and gauge, offering the complete package
Units:
Capacity (Imperial tons)10
Power Source ValveManual
Maximum Vertical Daylight (in)40
Capacity (kn)101
Dimension N (mm)1320
Maximum Bed Width (mm)473
Maximum Bed Width (in)18.63
Maximum Operating Pressure10000
Dimension A Min2.44
Weight (lbs)160
Press Capacity (tons)10
Cylinder Stroke (mm)254
Cylinder TypeSingle-Acting, Spring Return
Dimension L (mm)189
Maximum Operating Pressure (psi)10000
Dimension N (in)52
Pump Model NumberXA12
Pressing Speed (in/sec)13.4
Cylinder Stroke (in)10
Cylinder Model NumberRC1010
Dimension L (in)7.44
Dimension A Max (mm)1016
Weight (kg)72
Rapid Advance Speed (mm/sec)7,5
Power Source TypeAir
Pressing Speed (mm/sec)1,9
Dimension M (mm)889
Press Capacity (imperial tons)10
Dimension A Max40
Maximum Operating Pressure (bar)700
Product TypeH-Frame Press
Maximum Vertical Daylight (mm)1016
Rapid Advance Speed (in/sec)2.2
Dimension M (in)35
Dimension A Min (mm)62

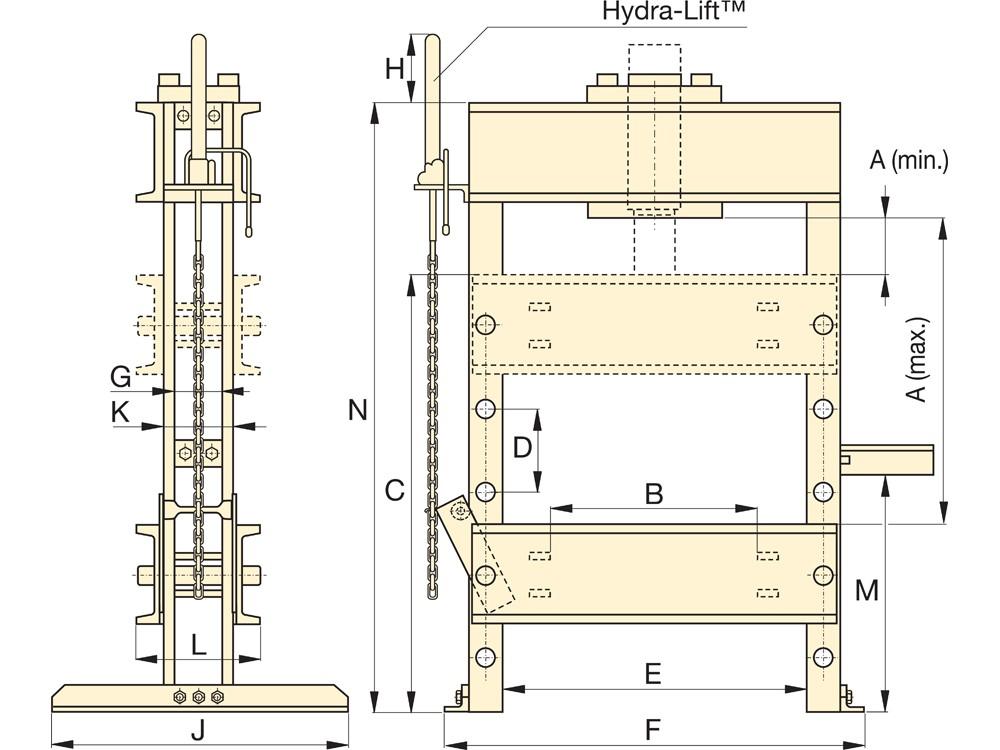

Units:
Dimension BN/A"
Dimension C46.75"
Dimension D5"
Dimension E18.63"
Dimension F24.88"
Dimension GN/A"
Dimension HN/A"
Dimension J29.75"
Dimension K4.25"
