IPR10075, 100 Ton, Roll Frame Hydraulic Press with RR10013 Double-Acting Cylinder and ZE4420SBN Electric Pump
Item ID: IPR10075
$76,949.85
Free ShippingEst. Ship date is Tue, Jan 5th 2027
Product Specifications
Product TypeRoll Frame Press
Maximum Bed Width (in)35
Cylinder TypeDouble-Acting, Hydraulic Return
Available - Backorder
About this Product
Features
- Quality welded frame for maximum strength and long life
- Exclusive "Hydra-Liftâ„¢" bed for effortless adjustment of the vertical daylight (10-ton models are manual)
- Roller head design is standard to allow movement and locking of the cylinder from side to side(10-ton, 25-ton, and 30-ton are manual)
- All models in the Quick Selection Chart have been matched to a pump, cylinder, hoses and gauge, offering the complete package
Units:
Product TypeRoll Frame Press
Maximum Bed Width (in)35
Cylinder TypeDouble-Acting, Hydraulic Return
Weight (kg)1745,9
Dimension L (mm)270
Maximum Bed Width (mm)889
Press Capacity (kN)933
Vertical Daylight Minimum A (in)6.28
Press Capacity (tons)100
Capacity (Imperial tons)100
Dimension N (in)118.94
Dimension M (in)32
Vertical Daylight Maximum A (mm)1048
Rapid Advance Speed (in/sec)1.5
Dimension L (in)10.63
Maximum Vertical Daylight (in)41.28
Pump Model NumberZE5420SGN
Maximum Operating Pressure (psi)10000
Maximum Vertical Daylight (mm)1048
Dimension N (mm)3021
Cylinder Stroke (mm)333
Weight (lbs)3849
Pressing Speed (in/sec)10.3
Cylinder Model NumberRR10013
Pressing Speed (mm/sec)0,7
Dimension M (mm)813
Vertical Daylight Minimum A (mm)159
Vertical Daylight Maximum A (in)41.28
Press Capacity (imperial tons)100
Maximum Operating Pressure10000
Cylinder Stroke (in)13.13
Rapid Advance Speed (mm/sec)7,7
Maximum Operating Pressure (bar)700

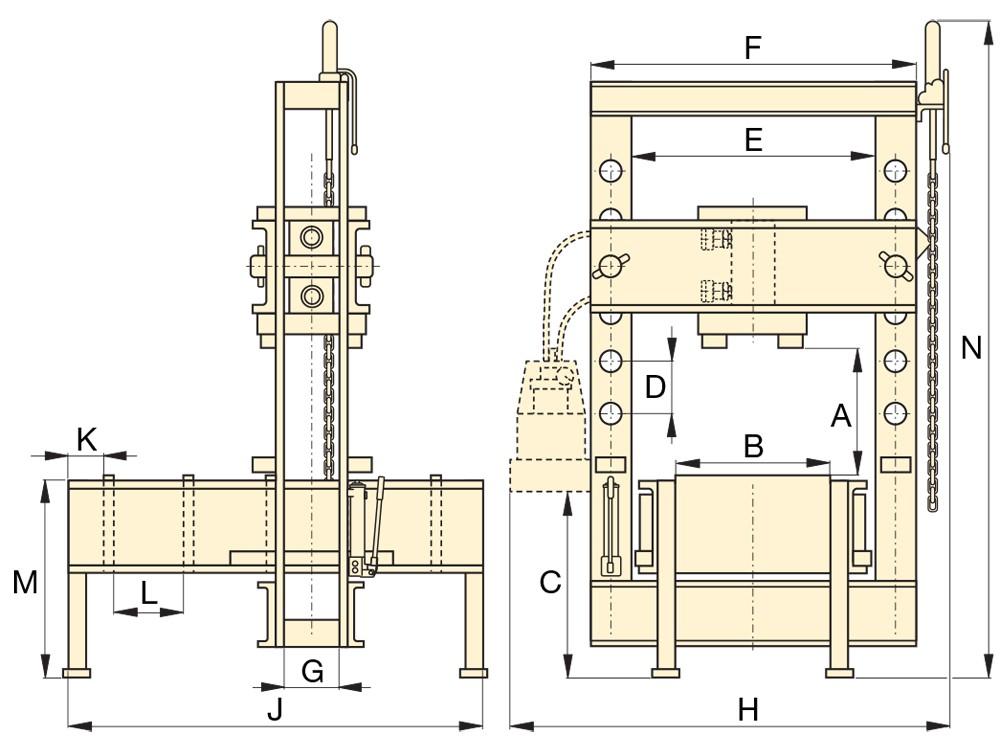

Units:
Dimension B26.5"
Dimension C38"
Dimension D8.75"
Dimension EN/A
Dimension F45"
Dimension G5.75"
Dimension H63.19"
Dimension J66"
Dimension K8"
