JS500, 550 Ton, Jack-Up System
Item ID: JS500
Contact for Pricing
Product Specifications
Capacity per Tower (metric tons)500
Barrel Loading System J (in)18.03
Capacity per Tower (imperial tons)550
About this Product
Features
- The jack-up system is a custom developed multi-point lifting system. A typical system setup includes four jack-up units positioned under each corner of a load.
- The lifting frame of a jack-up unit contains four hydraulic lifting cylinders, one in each corner, which lift the load using the stacked steel barrels.
- A load is lifted in increments as barrels are slid into the system, lifted, and stacked; forming 'lifting towers'. A jack-up system is operated and controlled by a computer control unit.
- Each unit's lifting and lowering operations occur simultaneously; the computer control unit's synchronous technology maintains the balance of the load.
- Self-contained hydraulics in each jack-up unit for uncluttered work area
- Synchronously lift loads with multiple jack-up units. The most common system set-up includes 4 jack-up units
- Adjustable top barrel is standard on all models
- Lifting barrels are stacked together to mechanically hold the load
- Up to 4% side load capacity depending on lifting height
- Computer controls for operating the jack-up system with automatic and manual lifting settings.
Units:
Capacity per Tower (metric tons)500
Barrel Loading System J (in)18.03
Capacity per Tower (imperial tons)550
Product TypeJack-Up System

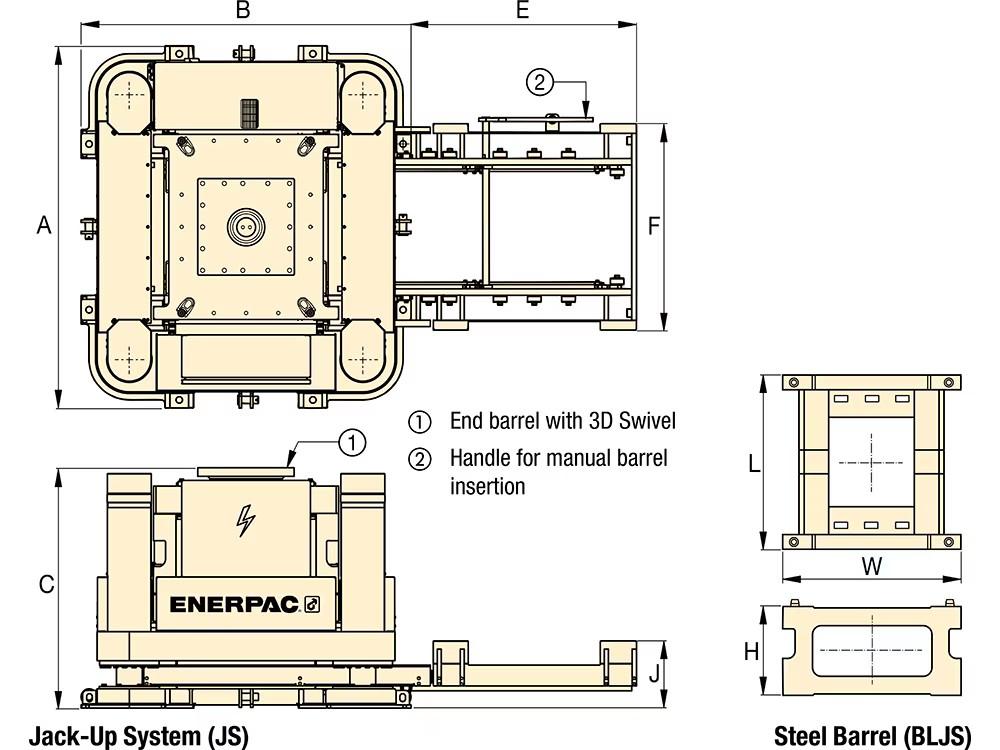

Base Frame Dimension A (mm)2800
Weight per jack-up tower, excluding adjustable top barrel (kg)13750
Weight Adjustable Top Barrel (3D Swivel) (lbs)8470
Barrel Loading System E (mm)1980
Weight Adjustable Top Barrel (3D Swivel) (kg)3850
Base Frame Dimension A (in)110.25
Maximum Sideload (m)4% @ 15m
Electric Power Pack (hp)40
Barrel Loading System E (in)69.75
Base Frame Dimension C (in)66.93
Capacity per Tower (kN)5000
Electric Power Pack (kW)30
Base Frame Dimension B (in)90.55
Maximum Lifting Speed (ft per hr)13
Barrel Loading System F (in)69.75
Barrel Loading System J (mm)458
Weight per jack-up tower, excluding adjustable top barrel (lbs)30250
Base Frame Dimension B (mm)2300
Maximum Sideload (ft)4% @ 49.2 ft
Base Frame Dimension C (mm)1700
Barrel Loading System F (mm)1771
