LGM203, 3 Ton, 2 Jaw, Mechanical Lock-Grip Puller
Item ID: LGM203
$290.38
Free ShippingEst. Ship date is Mon, Oct 19th 2026
Product Specifications
Maximum Torque (Nm)41
Maximum Spread (in)5.2
Maximum Spread (mm)132
Available - In Stock
About this Product
Features
- LGM-Series Pullers are an ideal solution for pulling small to medium-size wheels, sprockets, bearings and other similar shaft mounted parts. The puller’s selfcentering closing system allows all jaws to move simultaneously, making it easy for a single operator to mount the puller and to perform the application. Turning the puller handle locks the jaws onto the application, allowing the desired object to be pulled free when the spindle is turned.
- Quickly and easily mount on a wide range of applications
- Lock-on jaws offer a secure grip for safe and easy operation
- Synchronous jaw movement enables entire pulling job to be performed by a single operator
- LGM-Series Pullers MUST be used with a point protector if the shaft end does not contain a drilled center hole. One point protector is included with every puller.
- Always wear safety goggles and gloves while using pullers.
Units:
Maximum Torque (Nm)41
Maximum Spread (in)5.2
Maximum Spread (mm)132
Weight (kg)1,7
Puller Power SourceMechanical
Minimum Spread (mm)28
Capacity (kn)267
Capacity (Imperial tons)3
Minimum Spread (in)1.1
Puller TypeMechanical 2 Jaw Puller
Dimension B Maximum (in)5.2
Weight (lbs)3.74
Product TypeLock-Grip Puller Mechanical
Maximum Reach (in)4.02
Dimension B Minimum (in)1.1
Maximum Reach (mm)102
Maximum Torque (Ft.lbs)30
Number of Jaws2

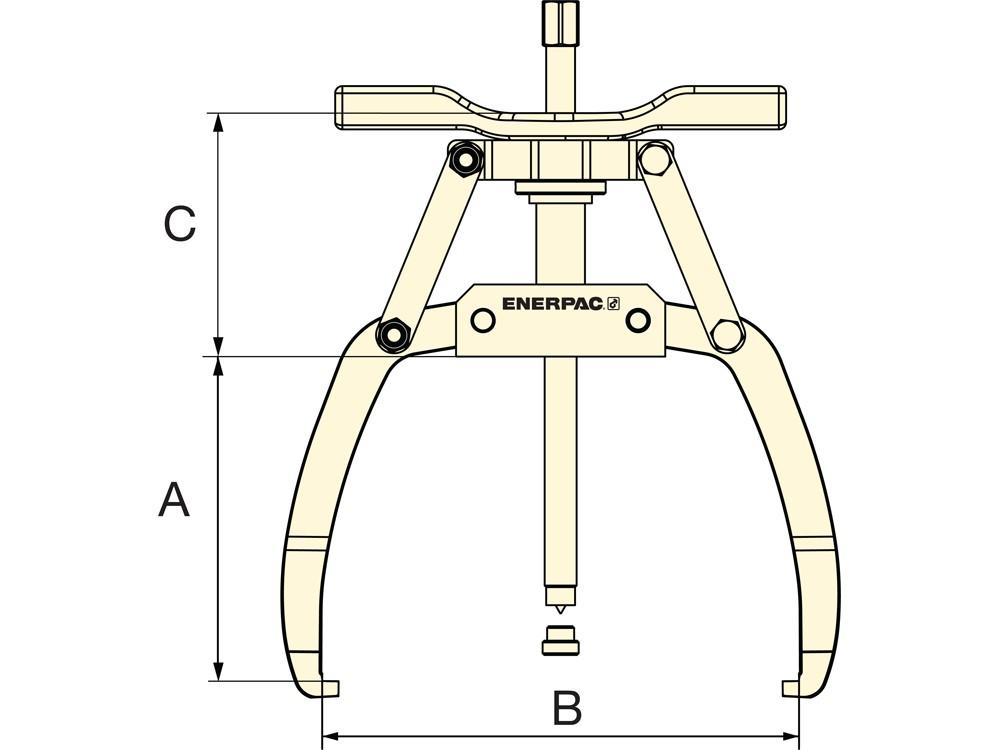

Units:
Dimension A4.02"
Dimension B5.2"
Dimension C2.36"
