RLS101, 10 ton (89,0 kN) Capacity, 1.5 in (38,1 mm) Stroke, Single-Acting, Low Height Hydraulic Cylinder
Item ID: RLS101
$559.62
Free ShippingEst. Ship date is Wed, Oct 28th 2026
Product Description
- Compact low-profile design.
- HD spring for fast retraction.
- Grooved plunger to stabilize the load.
- Stop ring for piston blow-out protection.
- Rod wiper protects inner cylinder from dirt.
- Plated piston to resist scoring & corrosion.
Product Specifications

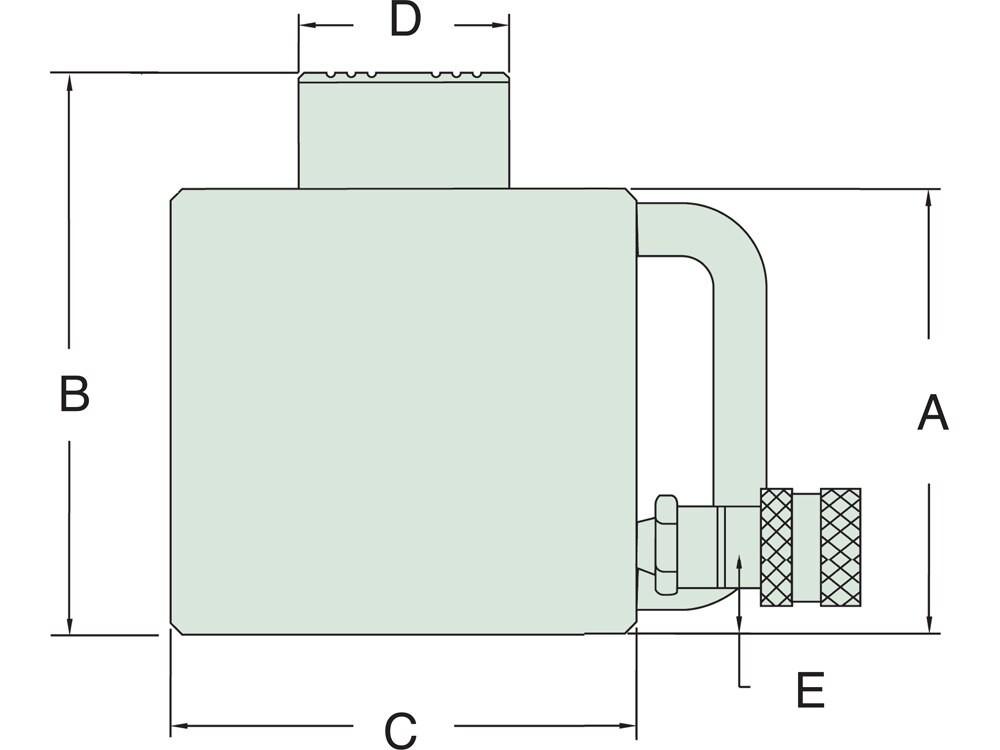

Collapsed Height A (in)3.47
Weight (lbs)9
MaterialSteel
Available - Backorder
About this Product
- Compact low-profile design.
- HD spring for fast retraction.
- Grooved plunger to stabilize the load.
- Stop ring for piston blow-out protection.
- Rod wiper protects inner cylinder from dirt.
- Plated piston to resist scoring & corrosion.
Units:
Maximum Operating Pressure (psi)10000
Capacity (Imperial tons)10
Stroke (inch)1.5
Collapsed Height A (in)3.47
Return TypeSingle-Acting, Spring Return
Plunger TypeSolid
MaterialSteel
Weight (lbs)9
80%
Think Safety
Manufacturer's rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Units:
Collapsed Height A3.47"
