SBL600, 674 Ton, Hydraulic Gantry
Item ID: SBL600
Contact for Pricing
Product Specifications
Weight per Leg with Oil (lbs)19842
Stage 2 Maximum Capacity 4 Legs (imperial tons)562

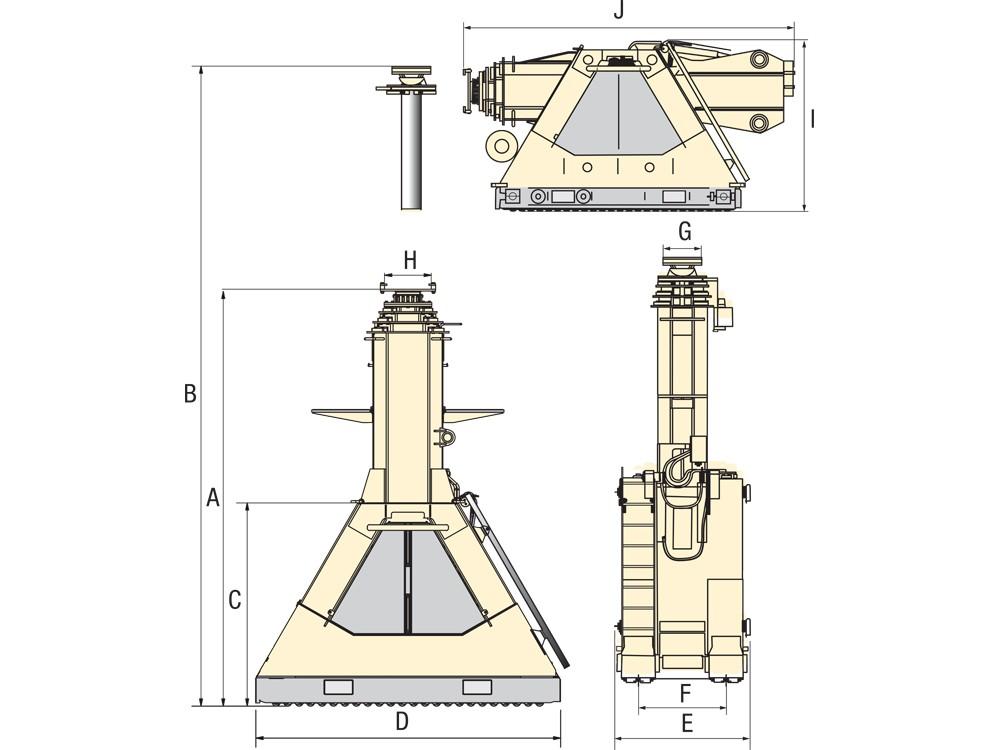

Retracted Height A (mm)4300
About this Product
Features
- Rectangular boom: provides added strength for increased capacity and lifting height
- Has foldable boom to enable easy transport and setup
- Has steel wheels to provide optimum load distribution
Units:
Maximum Capacity 4 Legs (imperial tons)674
Stage 1 Maximum Capacity 4 Legs (imperial tons)674
Stage 2 Maximum Capacity 4 Legs (imperial tons)562
Stage 3 Maximum Capacity 4 Legs (imperial tons)416
Retracted Height A (ft)14.11
Stage 1 Maximum Height B (ft)21.33
Stage 2 Maximum Height B (ft)28.22
Stage 3 Maximum Height B (ft)34.78
Weight per Leg with Oil (lbs)19842
