SG18TESTD, 20.2 ton, Hydraulic Secure-Grip In-Line Flange Spreader Set, 3.90 in Maximum Spread
Item ID: SG18TESTD
$12,784.70
Free ShippingEst. Ship date is Tue, JanĀ 12th 2027
Product Specifications
Case Dimensions (mm)890 x 570 x 165
Usable on Flanges Specified to Accept the Following Bolt SizesM60 (2 3/8"), M64 (2 1/2"), M70 (2 3/4")
Dimension A2, Minimum Axial Tool Space (installed) (in)35.4
Available - Backorder
About this Product
Features
- The SG18TE In-line secure grip bolt-hole spreader can be used on all flange types with bolt-hole sizes ranging from 2.34" (59.5 mm) to 2.95" (75 mm). This high-end, hydraulic model offers up to 20.2 imperial tons (180 kN) of spreading force.
- Spreading force of 40.5 imperial tons (350 kN) if used in pairs as recommended.
- Set Includes:
1 x SG18TE Tool c/w Hydraulic Cylinder
1 x Spreading plug
1 x 10,000 psi (700 bar) HP550S Sealed Hand Pump with Gauge
1 x 10,000 psi (700 bar) Hydraulic Hose, 78.7" (2 m)
1 x 12" (300 mm) Vernier Calliper
1 x 0.5" (12.5 mm) Spacer Plate
1 x 5 mm Allen Key
1 x 2.0" (50 mm) Spacer
1 x Safety Block
2 x M60 (2 3/8") Collets
2 x M64 (2 1/2") Collets
2 x M70 (2 3/4") Collets
1 x Instruction Manual
1 x Carry Case with protective foam inserts

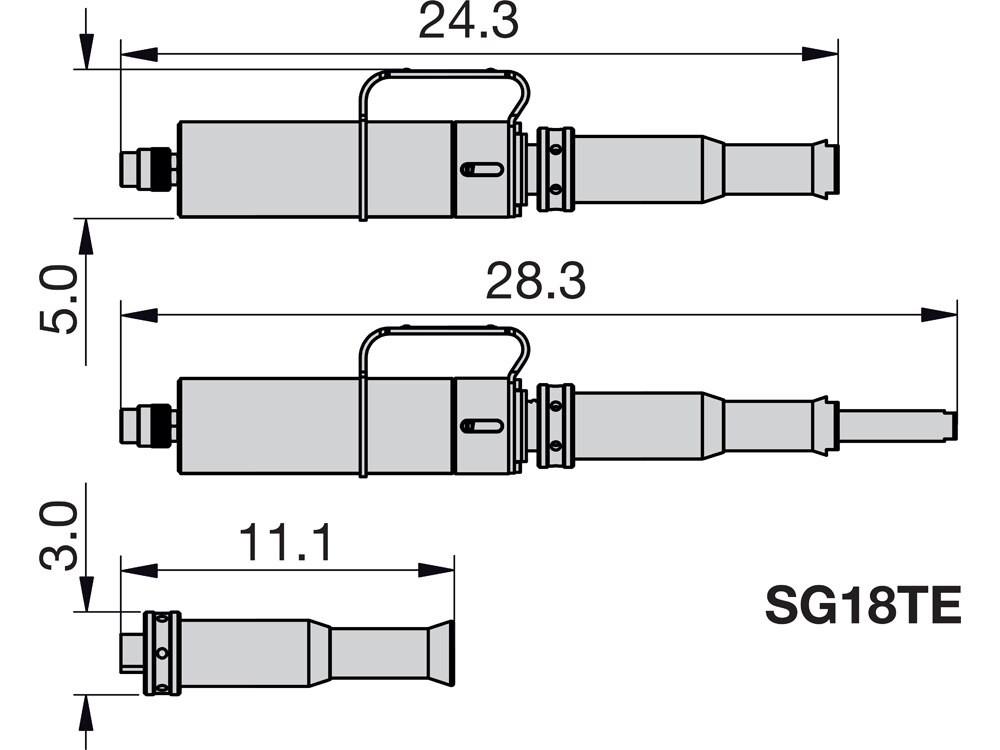

Units:
Case Dimensions (mm)890 x 570 x 165
Usable on Flanges Specified to Accept the Following Bolt SizesM60 (2 3/8"), M64 (2 1/2"), M70 (2 3/4")
Dimension A2, Minimum Axial Tool Space (installed) (in)35.4
Maximum Spread (in)3.9
Capacity (Imperial tons)20.2
Dimension R, Minimum Radial Space (mm)55
Dimension V, Minimum Valve/Spacer Thickness (mm)0
Dimension V, Minimum Valve/Spacer Thickness (in)0
Dimension F, Minimum Flange Joint Thickness (in)7.5
Dimension P2, Minimum Axial Plug Space (installed) (in)11.1
Dimension A1, Minimum Axial Tool Space (for installation) (in)24.4
Product TypeFlange Spreader Set - Secure-Grip
Maximum Spread (mm)100
Dimension P2, Minimum Axial Plug Space (installed) (mm)283
Weight (lbs)99.2
Tip Clearance (in)0
Dimension F, Maximum Flange Joint Thickness (in)17.7
Dimension F, Maximum Flange Joint Thickness (mm)450
Tip Clearance (mm)0
Power SourceHydraulic
Case Dimensions (in)35.0 x 22.4 x 6.5
Dimension P1, Minimum Axial Plug Space (for installation) (in)11.1
Capacity (kn)180
Weight (kg)45
Maximum Operating Pressure (bar)690
Dimension P1, Minimum Axial Plug Space (for installation) (mm)283
Maximum Operating Pressure (psi)10000
Dimension A1, Minimum Axial Tool Space (for installation) (mm)620
Capacity (Metric Tons)18
Dimension F, Minimum Flange Joint Thickness (mm)190
Dimension R, Minimum Radial Space (in)2.2
Dimension A2, Minimum Axial Tool Space (installed) (mm)900
