SG4TMSTD, 4.2 Ton, Mechanical Secure-Grip Flange Spreader Set, 2.95 in Maximum Spread
Item ID: SG4TMSTD
$5,293.98
Free ShippingEst. Ship date is Thu, JanĀ 7th 2027
Product Specifications
Dimension V, Maximum Valve/Spacer Thickness (mm)45
Dimension R, Minimum Radial Space (mm)170
Maximum Spread (in)2.95
Available - Backorder
About this Product
Features
- The SG4TM secure grip bolt-hole spreader can be used on all flange types with bolt-hole sizes ranging from 0.69" (17.5mm) to 0.91" (23.5mm). Additional short collet holders are supplied within the tool kit allowing the tool to spread flanges apart and remove a spacer, wafer or butterfly valve. This low-end, mechanical model offers up to 4.2 imperial tons (37kN) of spreading force.
- Spreading force of 8.4 imperial tons (74 kN) if used in pairs as recommended.
- Set Includes:
1 x SG4TM Tool
1 x 6" (150 mm) Vernier Calliper
1 x 3/8" Drive Torque Wrench and 16 mm Socket
1 x Safety Block
2 x M16 (5/8") Collets
2 x M20 (3/4") Collets
1 x Instruction Manual
1 x Carry Case with protective foam inserts - Short Collet Holder Sets (SCH) are available which can offer improved range of application.
- Collet Holders can also be dismantled and inserted through bolt-holes from opposite side.
Units:
Dimension V, Maximum Valve/Spacer Thickness (mm)45
Dimension R, Minimum Radial Space (mm)170
Maximum Spread (in)2.95
Weight (lbs)28.2
Product TypeFlange Spreader Set - Secure-Grip
Dimension C, Maximum Flange Clearance (mm)50
Flange Bolt-hole Diameter B (in)0.69-0.91
Maximum Spread (mm)75
Tip Clearance (in)0
Dimension F, Maximum Flange Joint Thickness (in)7.3
Tip Clearance (mm)0
Dimension A2, Minimum Axial Tool Space (installed) (mm)200
Dimension V, Minimum Valve/Spacer Thickness (mm)0
Dimension F, Minimum Flange Joint Thickness (mm)60
Maximum Operating Torque (Nm)47
Power SourceMechanical
Dimension A1, Minimum Axial Tool Space (for installation) (mm)170
Maximum Operating Torque (Ft.lbs)35
Dimension V, Maximum Valve/Spacer Thickness (in)1.8
Case Dimensions (in)20.5 x 14.8 x 6.5
Capacity (kn)37
Weight (kg)12,8
Usable on Flanges Specified to Accept the Following Bolt SizesM16, M20, 5/8", 3/4"
Dimension A1, Minimum Axial Tool Space (for installation) (in)6.7
Capacity (Metric Tons)3.7
Flange Minimum Access Gap A (in)0
Capacity (Imperial tons)4.2
Case Dimensions (mm)520 x 375 x 165
Dimension F, Maximum Flange Joint Thickness (mm)185
Flange Bolt-hole Diameter B (mm)17,5-23
Dimension A2, Minimum Axial Tool Space (installed) (in)7.9
Flange Minimum Access Gap A (mm)0
Dimension F, Minimum Flange Joint Thickness (in)2.4
Dimension R, Minimum Radial Space (in)6.7
Dimension V, Minimum Valve/Spacer Thickness (in)0
Dimension C, Maximum Flange Clearance (in)2

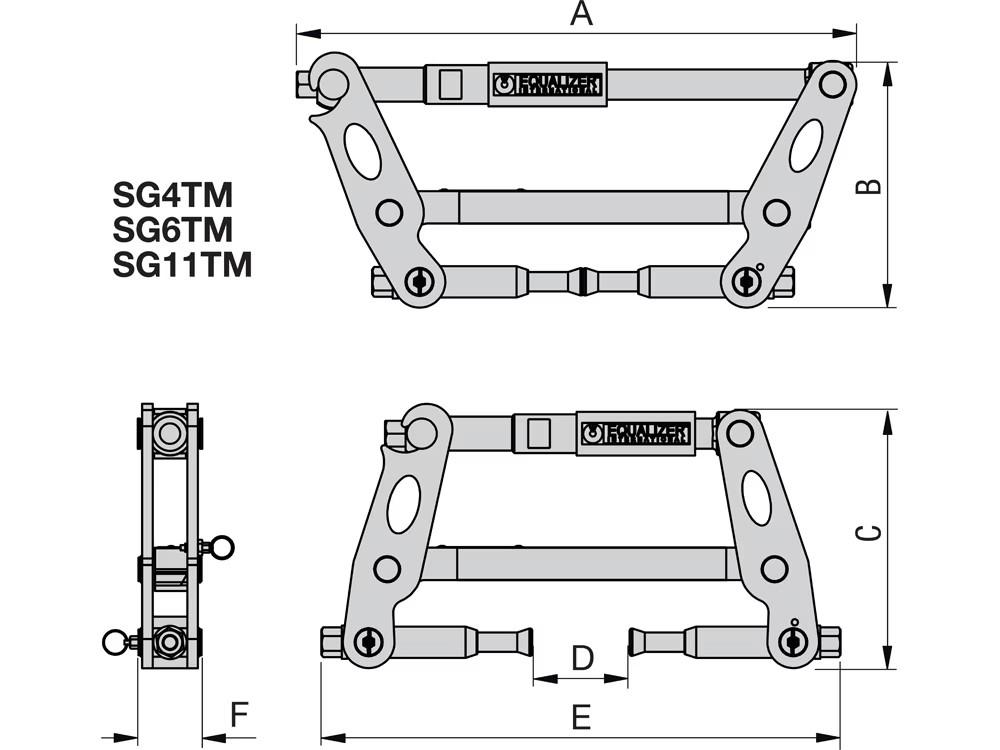

Units:
Dimension A15.7"
Dimension B7.5"
Dimension C7.2"
Dimension D3"
Dimension E15.2"
Dimension F1.9"
