SL200, 220 Ton, Hydraulic Gantry
Item ID: SL200
Contact for Pricing

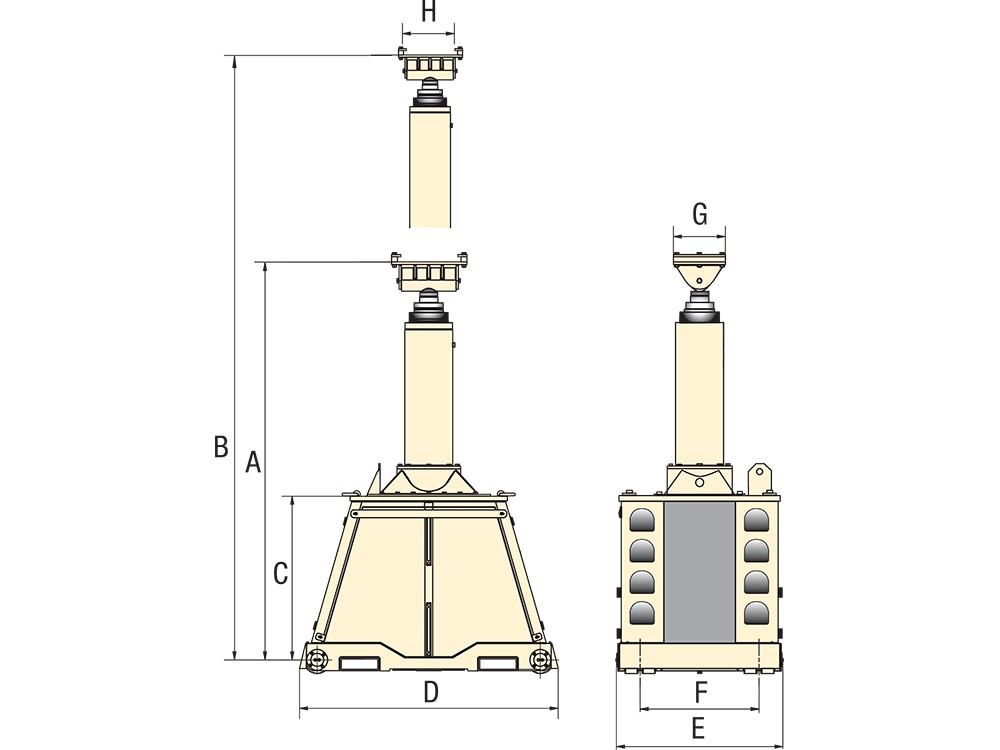

Product Specifications
Beam Plate H (in)22.83
Track Gauge F (in)24
Beam Plate G (in)13.78
About this Product
Features
- Self-contained hydraulics and electronics
- Intelli-Lift wireless control system
- Self-propelled wheels or tank rollers
- Full range of supplementary equipment: header beams, lifting lugs, side shift, skid tracks
- Designed and tested to meet ASME B30.1-2015 safety standards
- Lloyds witness tested to 125% of maximum working load
Units:
Maximum Capacity 4 Legs (imperial tons)220
Stage 1 Maximum Capacity 4 Legs (imperial tons)220
Stage 2 Maximum Capacity 4 Legs (imperial tons)150
Stage 3 Maximum Capacity 4 Legs (imperial tons)'-
Retracted Height A (ft)8.96
Stage 1 Maximum Height B (ft)15.47
Stage 2 Maximum Height B (ft)21.98
Weight per Leg with Oil (lbs)4850
