SPH35SA, 35 Ton (311,4 kN) Capacity, Single-Acting Hydraulic Punch and Die Set
Item ID: SPH35SA
$6,759.89
Free ShippingEst. Ship date is Mon, DecĀ 7th 2026
Product Description
- Industrial grade, single acting, spring return design.
- Punches holes in material up to .5" (12,7 mm) thick mild steel.
- All models come equipped with a heavy duty steel case, providing tool and die organization along with ease of transport.
- Large selection of square, rounded and oblong dies and punches are offered to complete a wide variety of applications.
Product Specifications
Dimension I (mm)76,2
Maximum Thickness (mm)12,7
Capacity (kn)3114
Available - Backorder
About this Product
- Industrial grade, single acting, spring return design.
- Punches holes in material up to .5" (12,7 mm) thick mild steel.
- All models come equipped with a heavy duty steel case, providing tool and die organization along with ease of transport.
- Large selection of square, rounded and oblong dies and punches are offered to complete a wide variety of applications.
Units:
Dimension I (mm)76,2
Maximum Thickness (mm)12,7
Capacity (kn)3114
Capacity (Imperial tons)35
Steel CaseYes
Weight (lbs)32
Maximum Thickness (in)0.5
Maximum Operating Pressure (psi)10000
Maximum Operating Pressure (bar)700
Weight (kg)14,5
Product TypePunch and Die Set
Dimension I (in)3

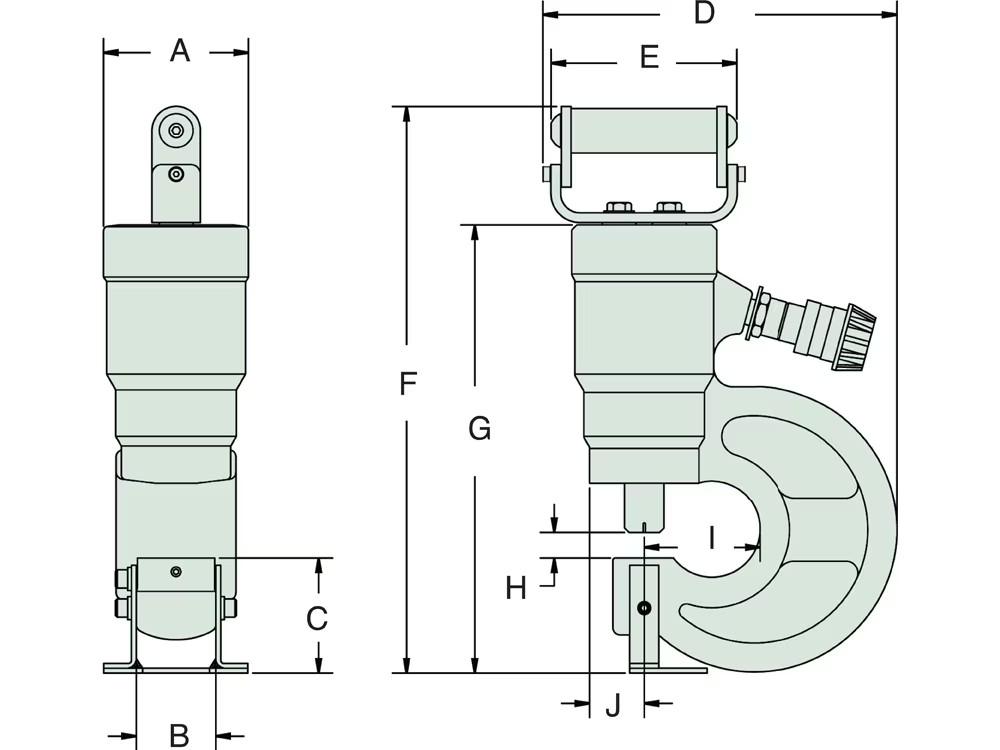

Units:
Dimension A3.75"
Dimension B2.06"
Dimension C2.97"
Dimension D9.16"
Dimension E4.81"
Dimension F14.66"
Dimension G11.6"
Dimension H0.66"
Dimension J1.42"
