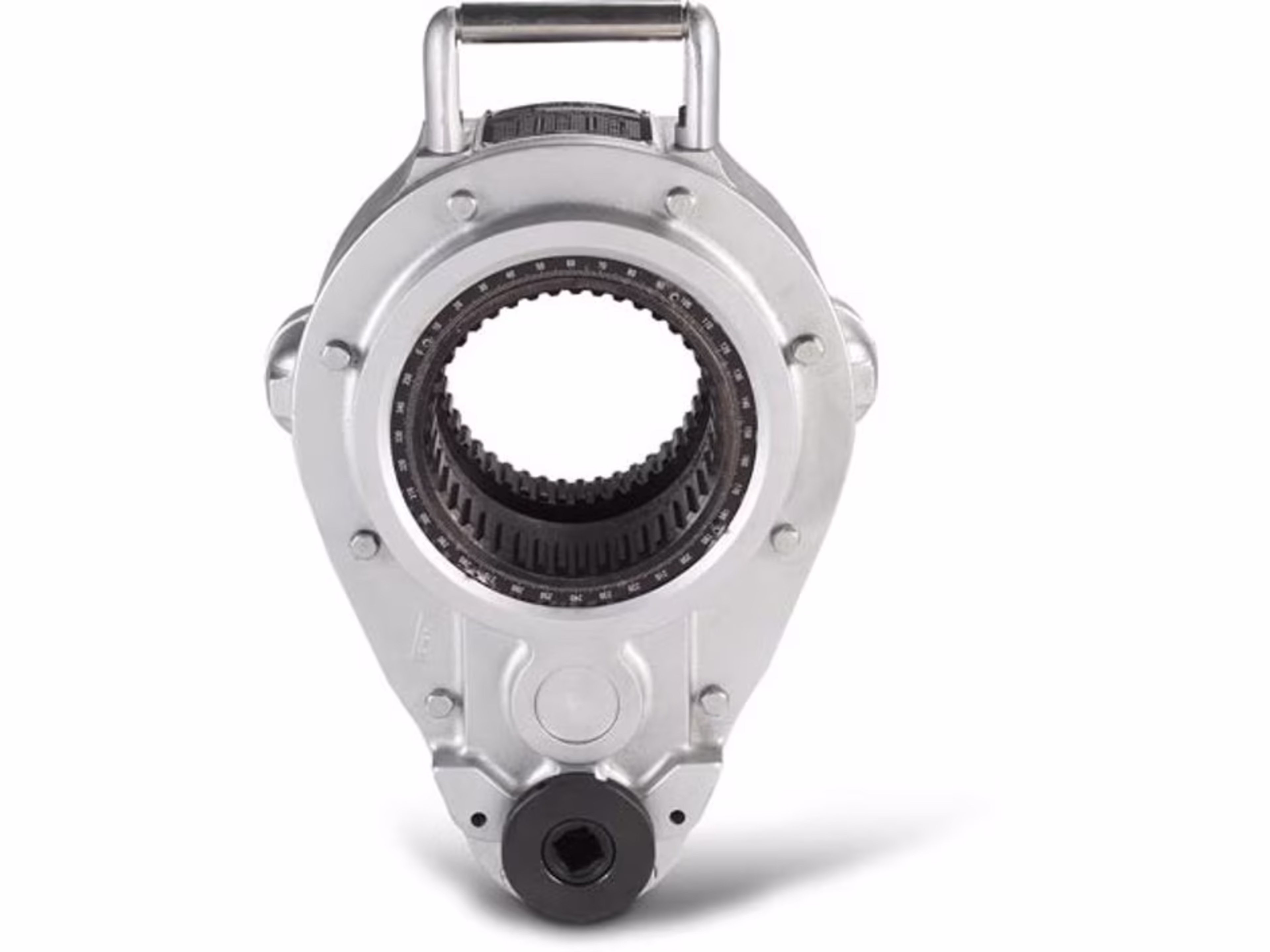

SWE8200, High Capacity Torque Multiplier, 12000 ft.lbs. Torque, Internal Spline
Item ID: SWE8200
Contact for Pricing
Product Description
High ratio, multiple reduction gear mechanisms providing a means for loosening and tightening threaded assemblies that demand very high torque values. Designed with an internal splined drive that connects to sleeve sockets which are specially designed for each application. Anchor pins are located on the back and/or front surfaces for versatility of anchoring.
Product Specifications
Anchor pin center-to-center (mm)266.7
Maximum Torque Output (Nm)16270
Maximum Torque Output (Ft.lbs)12000
About this Product
High ratio, multiple reduction gear mechanisms providing a means for loosening and tightening threaded assemblies that demand very high torque values. Designed with an internal splined drive that connects to sleeve sockets which are specially designed for each application. Anchor pins are located on the back and/or front surfaces for versatility of anchoring.
Units:
Anchor pin center-to-center (mm)266.7
Maximum Torque Output (Nm)16270
Maximum Torque Output (Ft.lbs)12000
Anchor pin center-to-center (in)10.5
Weight (lbs)54
Product TypeHigh Capacity Torque Multiplier
Input Drive (in)3/4" square female
Anchor Pin Length (mm)25
Weight (kg)24.49
Anchor Pin Length (in)1
Input Drive (mm)19 mm square female
Anchor Pin Diameter (in)1
Torque Ratio11.1 : 1
Output Drive (mm)Internal spline, 43 teeth 8/16 pitch
Anchor Pin Diameter (mm)25
Compatible ProductsSWE8202A,SWE8202-290
Output Drive (in)Internal spline, 43 teeth 8/16 pitch
