TFA12TEMIN, 13.5 Ton, External Hydraulic Wind Tower Flange Alignment Tool Set
Item ID: TFA12TEMIN
Contact for Pricing
Product Specifications
Weight (kg)28,4
Maximum Operating Pressure (bar)510
Height (mm)470
About this Product
Features
- Assists in aligning / de-ovalizing largeĀ flanges
- Helps resolve bolt-hole misalignment within tower sections of wind towers
- Can be used both on and offshore
- The TFA12TEMIN Set Includes:
1 x TFA12TE Tool
1 x Safety Lanyard
1 x Instruction Manual
1 x Carry Case

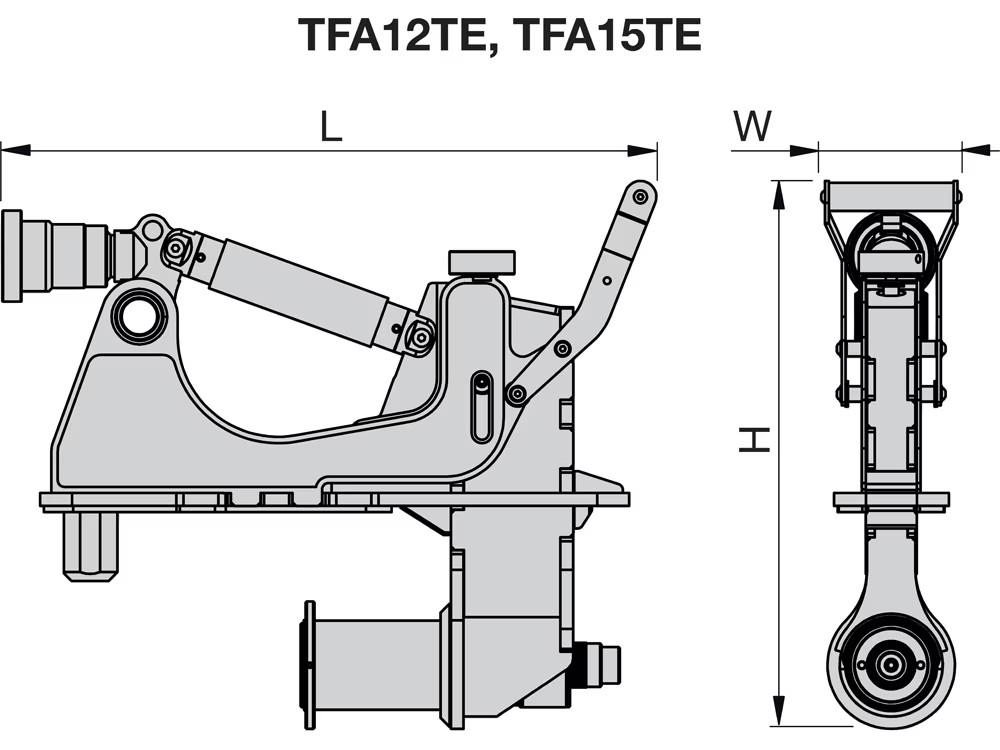

Units:
Weight (kg)28,4
Maximum Operating Pressure (bar)510
Height (mm)470
Maximum Reaction Force (metric ton)24
Reaction Force 1 Min (metric ton)10
Weight (lbs)62.6
Misalignment Max M (mm)65
Misalignment Min M (mm)0
Pipe Leg Drop Min D (in)3.5
Reaction Force 2 Min (imperial ton)24.7
Rise Min R (mm)144
Rise Min R (in)5.7
Height (in)18.5
Reaction Force 2 Max (metric ton)24
Pipe Leg Drop Max D (mm)132
Product TypeWind Tower Flange Alignment Tool
Reaction Spacing H (in)7.9
Length (mm)513
Minimum Bolt Size (mm)45
Bolt Hole Diameter Min (in)1.8
Maximum Reaction Force (imperial ton)27
Wing Reach Max W (mm)200
Length (in)20.2
Maximum Reaction Force (kN)240
Bolt Hole Diameter B Min (mm)45
Reaction Force 1 Min (imperial ton)11.2
Misalignment Min M (in)0
Reaction Force 1 Max (imperial ton)13.5
Wing Reach Min W (mm)160
Rise Max R (in)9.6
Rise Max R (mm)243
Reaction Spacing H (mm)200
Case Dimensions (mm)640 x 540 x 165
Width (mm)104
Maximum Operating Pressure (psi)7400
Minimum Bolt Size (in)1.8
Reaction Force 1 Max (metric ton)12
Wing Reach Min W (in)6.3
Reaction Force 2 Max (imperial ton)27
Pipe Leg Drop Max D (in)5.2
Case Dimensions (in)25.2 x 21.3 x 6.5
Misalignment Max M (in)2.6
Pipe Leg Drop Min D (mm)90
Reaction Force 2 Min (metric ton)22
Width (in)4.1
Wing Reach Max W (in)7.9
