TFA4TMSTD, 4.5 Ton, Mechanical Wind Tower Flange Alignment Tool Set
Item ID: TFA4TMSTD
$6,563.16
Free ShippingEst. Ship date is Tue, Apr 13th 2027
Product Specifications
Wing Reach Max W (in)7.007874016
Product TypeWind Tower Flange Alignment Tool
Misalignment Min M (mm)0
Available - Backorder
About this Product
Features
- Assists in aligning / de-ovalizing large flanges
- Helps resolve bolt-hole misalignment within tower sections of wind towers
- Can be used both on and offshore
- The TFA4TMSTD Set Includes:
1 x TFA4TM Tool
1 x Torque Wrench
1 x Instruction Manual
1 x Carry-Case
Units:
Wing Reach Max W (in)7.007874016
Product TypeWind Tower Flange Alignment Tool
Misalignment Min M (mm)0
Case Dimensions (in)23.6 x 14.6 x 7.9
Maximum Reaction Force (metric ton)4
Reaction Force 2 Min (metric ton)3
Rise Min R (in)0
Pipe Leg Drop Min D (mm)25
Reaction Force 1 Min (imperial ton)0.5

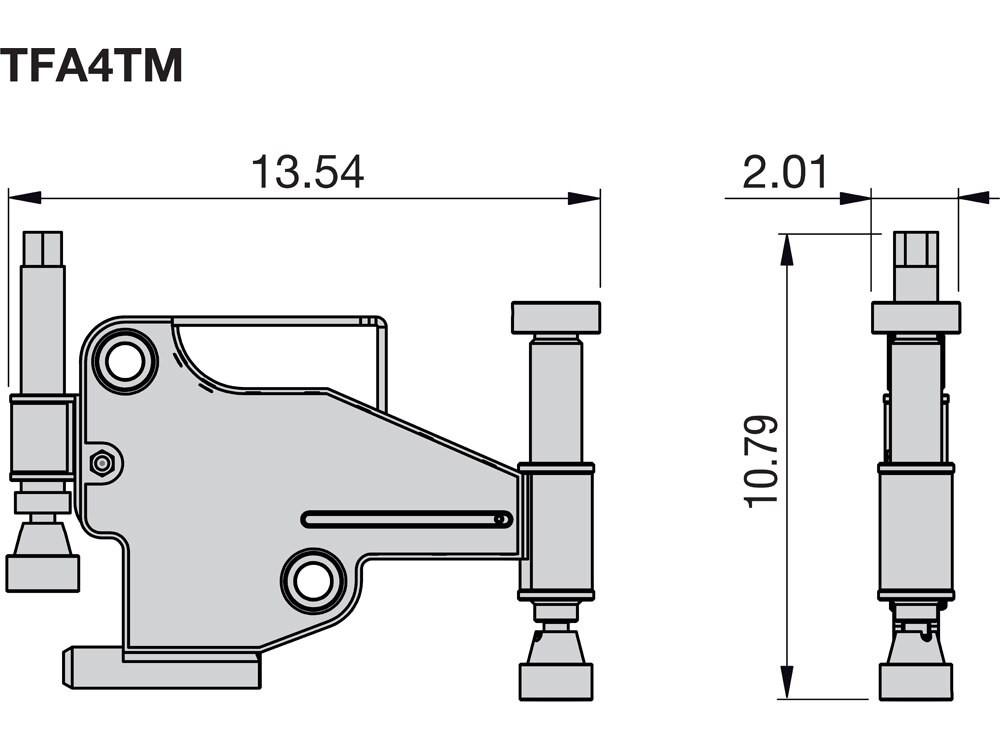

Length (in)13.5
Maximum Reaction Force (kN)40
Bolt Hole Diameter B Min (mm)25
Misalignment Max M (in)2.125984252
Reaction Spacing H (mm)245
Reaction Spacing H (in)9.645669291
Reaction Force 1 Max (imperial ton)1.12
Wing Reach Min W (mm)45
Pipe Leg Drop Max D (mm)106
Maximum Reaction Force (imperial ton)4.5
Bolt Hole Diameter Min (in)0.984251969
Minimum Bolt Size (in)1
Rise Max R (mm)54
Reaction Force 2 Max (metric ton)4
Wing Reach Max W (mm)178
Misalignment Min M (in)0
Pipe Leg Drop Min D (in)0.984251969
Reaction Force 2 Min (imperial ton)3.37
Height (in)10.8
Width (in)2
Wing Reach Min W (in)1.771653543
Reaction Force 1 Max (metric ton)1
Reaction Force 2 Max (imperial ton)4.5
Weight (kg)18
Length (mm)344
Rise Max R (in)2.125984252
Width (mm)51
Pipe Leg Drop Max D (in)4.173228346
Case Dimensions (mm)600 x 370 x 200
Misalignment Max M (mm)54
Rise Min R (mm)0
Weight (lbs)39.7
Reaction Force 1 Min (metric ton)0.4
Height (mm)274
Minimum Bolt Size (mm)25
