XLP256P392, 232 kN Workshop Press with RC256 Single-Acting Cylinder and P392 Hand Pump

Name: XLP256P392, 232 kN Workshop Press with RC256 Single-Acting Cylinder and P392 Hand Pump
Brand: Enerpac
SKU: XLP256P392

Item ID: XLP256P392

Contact for Pricing

Product Specifications

Press Capacity (tons)25

Pressing Speed (mm/sec){0,7}

Weight (kg)165

Units:

Press Capacity (tons)25

Pressing Speed (mm/sec){0,7}

Weight (kg)165

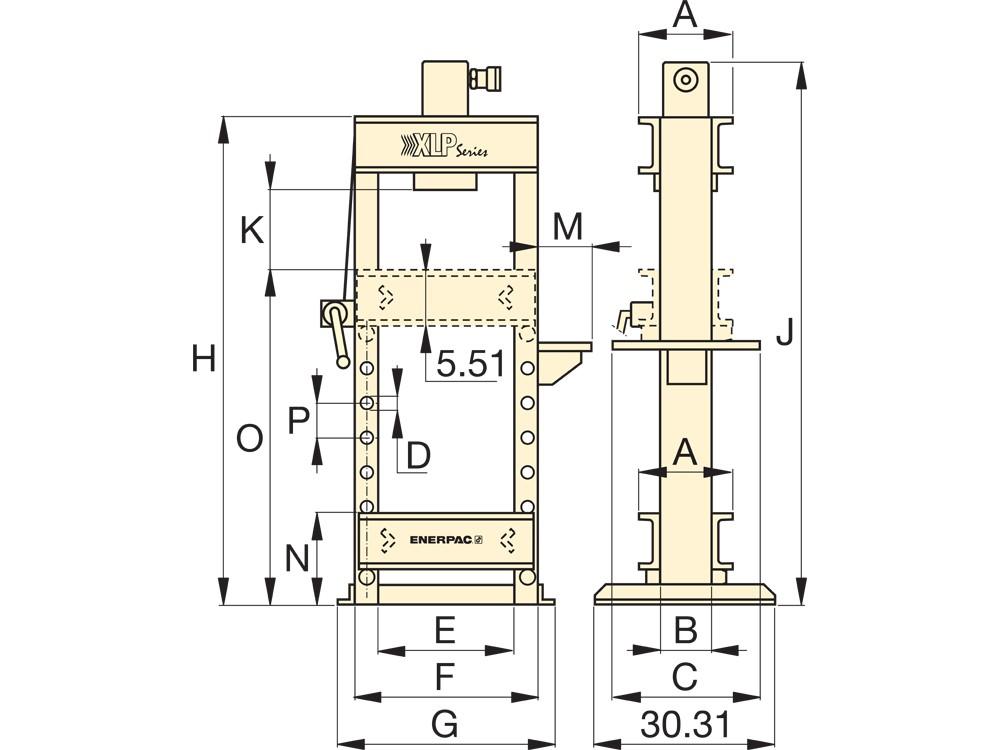

Dimension N (mm)212

Maximum Vertical Daylight (mm)1265

Press Capacity (kN)232

Maximum Operating Pressure (bar)700

Cylinder Stroke (mm)158

Product TypeWorkshop

Pump Model NumberP392

Dimension O (mm)1070

Maximum Horizontal Daylight (mm)510

Rapid Advance Speed (mm/sec){3,4}

Dimension P (mm)122

Dimension M (mm)140

Units:

Dimension AN/A

Dimension BN/A

Dimension CN/A

Dimension DN/A

Dimension EN/A

Dimension FN/A

Dimension GN/A

Dimension HN/A

Dimension JN/A

Dimension KN/A
