Pressure versus Torque: S-Series Torque Wrenches

newS-Series_XED_9791_2000.avif

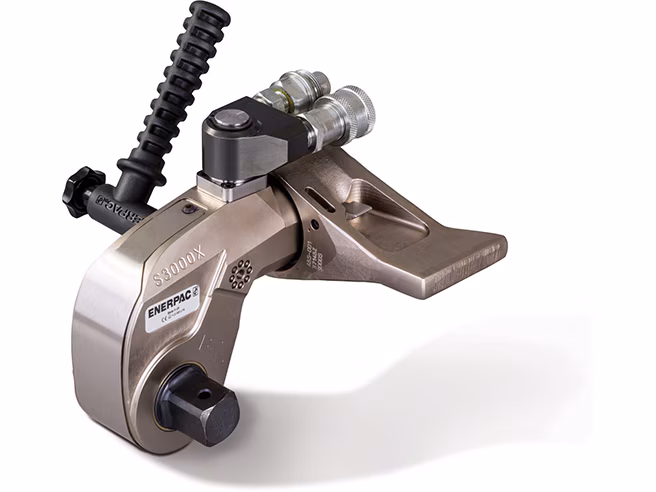

The function of a hydraulic Torque Wrench, is to convert hydraulic pressure into torque. This chart is a “quickreference” to help in determining what this conversion factor is. If you do not find your torque and pressure values in the chart, then the following conversion formulas can be used to find your theoretical torque value. The actual value may vary due to wrench condition and age.

T= P x TF

P= T / TF

Where:
    T = target torque
    P = pressure
    TF = theoretical applied torque


Bolting Integrity Software


A comprehensive on-line software solution for Bolted Joint Integrity.

Integral databases hold data for:


  • BS1560, MSS SP44, API 6A and 17D flanged joints
  • Common gasket materials and configurations
  • Comprehensive range of bolt materials
  • Comprehensive range of lubricants
  • Enerpac's Controlled Bolting Equipment including: Torque Multipliers, Hydraulic Wrenches and Bolt Tensioning tools Custom Joint information can also be entered.


The software offers Tool selection, Bolt Load calculations and Tool pressure settings, as well as a combined Application data sheet and Joint completion report.

S-Series Torque Chart
Pump PressureS1500X Torque OutputS3000X Torque OutputS6000X Torque OutputS11000X Torque OutputS25000X Torque Output
Max. Ft. lbs 1440Max. Ft. lbs 3225Max. Ft. lbs 6150Max. Ft. lbs 11175Max. Ft. lbs 26150
(psi)(ft-lbs)(ft-lbs)(ft-lbs)(ft-lbs)(ft-lbs)
100014432361511182515
120017338773813413018
140020245286115653521
160023051698417884024
1800259581110720124527
2000288645123022355030
2200317710135324595533
2400346774147626826036
2600374839159929066539
2800403903172231297042
3000432968184533537545
32004611032196835768048
34004901097209138008551
36005181161221440239054
38005471226233742479557
400057612902460447010,060
420060513552583469410,563
440063414192706491711,066
460066214842829514111,569
480069115482952536412,072
500072016133075558812,575
520074916773198581113,078
540077817423321603513,581
560080618063444625814,084
580083518713567648214,587
600086419353690670515,090
620089320003813692915,593
640092220643936715216,096
660095021294059737616,599
680097921934182759917,102
7000100822584305782317,605
7200103723224428804618,108
7400106623874551827018,611
7600109424514674849319,114
7800112325164797871719,617
8000115225804920894020,120
8200118126455043916420,623
8400121027095166938721,126
8600123827745289961121,629
8800126728385412983422,132
900012962903553510,05822,635
920013252967565810,28123,138
940013543032578110,50523,641
960013823096590410,72824,144
980014113161602710,95224,647
10,00014403225615011,17526,150
